F3WN-X

Sensors

F3WN-X[][][][]N[][]

Note

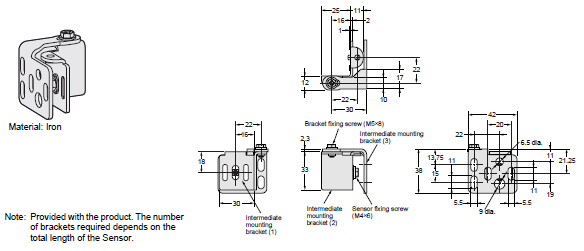

1. In the diagram on the left, the intermediate mounting bracket (refer to datasheet.) is shown mounted on the left as an example.
If the intermediate mounting bracket is mounted on the right, the mounting holes must also be on the right.
The mounting bracket must also be inverted.

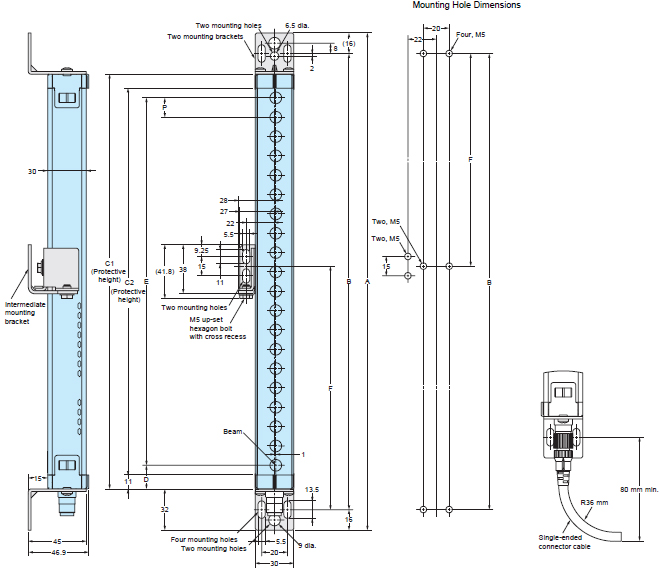

2. In configurations where the cable must be bent,allow at least the dimensions shown below. (Cable's minimum bending radius: 36 mm.)

The dimensions for different model numbers can be calculated using the following formulas.

F3WN-X[][][][]N14
Dimension C2 (protective height) = The 4 digits in the model
number
Dimension A = C2 + 86
Dimension B = C2 + 54
Dimension D = 15.5
Dimension E = C2 - 9
Dimension F = See table below.
Dimension P = 9

Note: When not using the value of F obtained with the above calculation, use a value not exceeding 670 mm.

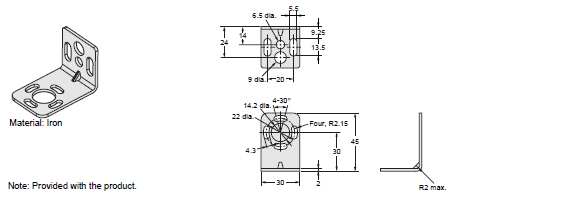

Top and Bottom Mounting Brackets

Intermediate Mounting Bracket

Accessories (Optional)

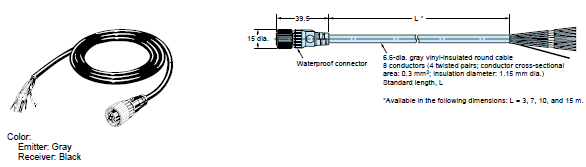

Single-ended Connector Cable
F39-JC3A (L = 3 m)
F39-JC7A (L = 7 m)
F39-JC10A (L = 10 m)
F39-JC15A (L = 15 m)
