SitemapSpatter-resistant Proximity Sensor
E2EQ
Data Sheet (748KB)
Quick links to 'E2EQ' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
E2EQ Pick up
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Pre-wired Models
Long Sensing-distance Models

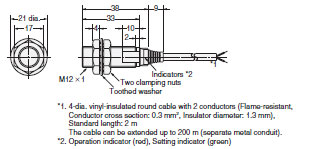

E2EQ-X4X1

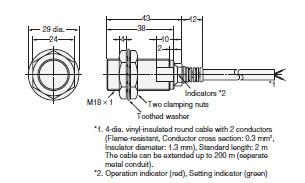

E2EQ-X8X1

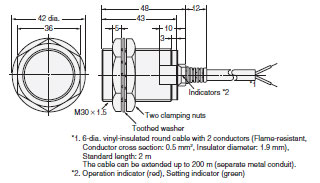

E2EQ-X15X1
Standard Models

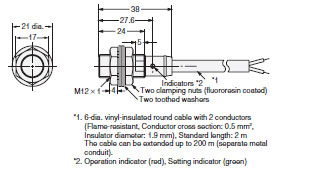

E2EQ-X3D1

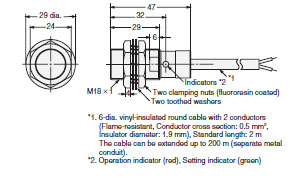

E2EQ-X7D1

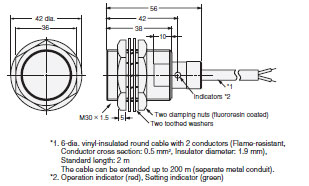

E2EQ-X10D1
Pre-wired Connector Models
Long Sensing-distance Models

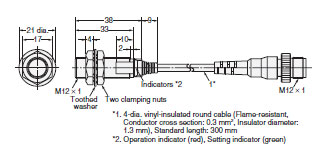

E2EQ-X4X1-M1(T)J

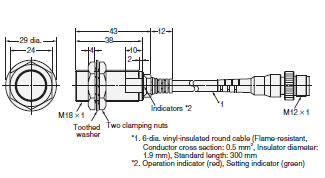

E2EQ-X8X1-M1(T)J

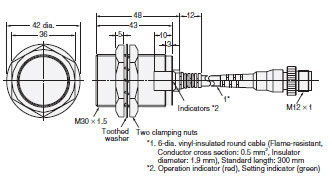

E2EQ-X15X1-M1(T)J
Standard Models

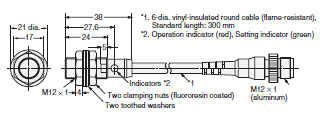

E2EQ-X3D1-M1(T)GJ

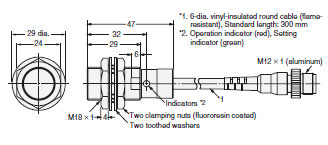

E2EQ-X7D1-M1(T)GJ

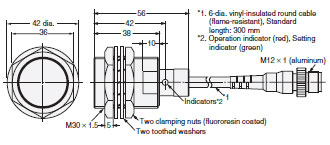

E2EQ-X10D1-M1(T)GJ
Mounting Hole Dimensions
Caution: All units are in millimeters unless otherwise indicated.
