Resin-case Proximity Sensor

E2F

Proximity Sensor with Resin Case with Superb Water Resistance

Data Sheet (421KB)

Inquiry of E2F

Related Contents

Quick links to 'E2F' page in your country / territory.

Europe
- Austria
- Belgium
- Czech Republic
- Denmark
- Finland
- France
- Germany
- Hungary
- Italy
- Latvia
- Lithuania
- Netherlands
- Norway
- Poland
- Portugal
- Russia
- Spain
- Sweden
- Switzerland
- Turkey
- United Kingdom

Middle East

Please contact our European headquarters.
Africa
- South Africa

Greater China
- China
- Hong Kong
- Taiwan
Asia-Pacific
- Australia
- India
- Indonesia
- Malaysia
- New Zealand
- Philippines
- Singapore
- Thailand
- Vietnam

Japan / Korea
- Japan
- Korea
Americas

Get more support via Products links, such as manuals and CAD files.

Primary Contents

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

DC 3-Wire Models

AC 2-Wire Models

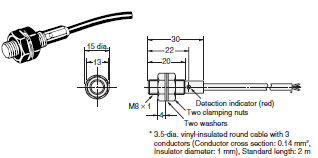

E2F-X1R5E[]

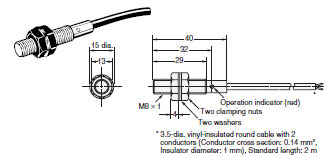

E2F-X1R5Y[]

E2F-X1R5E[]_Dim

E2F-X1R5Y[]_Dim

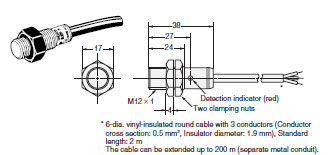

E2F-X2E[]

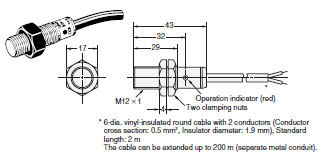

E2F-X2Y[]

E2F-X2E[]_Dim

E2F-X2Y[]_Dim

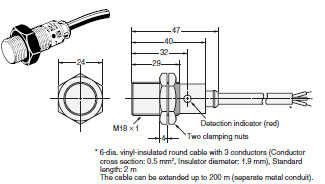

E2F-X5E[]

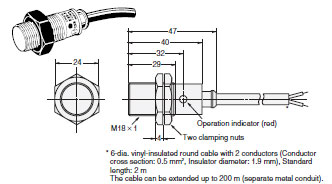

E2F-X5Y[]

E2F-X5E[]_Dim

E2F-X5Y[]_Dim

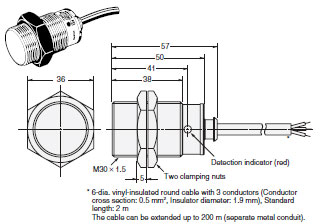

E2F-X10E[]

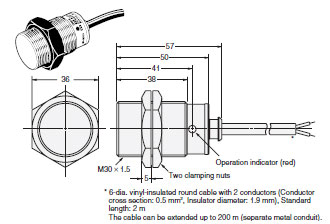

E2F-X10Y[]

E2F-X10E[]_Dim

E2F-X10Y[]_Dim

Mounting Hole Dimensions

E2F_Dim

Caution: All units are in millimeters unless otherwise indicated.
