SitemapRectangular Standard Proximity Sensor
TL-N / TL-Q / TL-G
Data Sheet (709KB)
Quick links to 'TL-N / TL-Q / TL-G' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
TL-N / TL-Q / TL-G Pick up
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Sensors

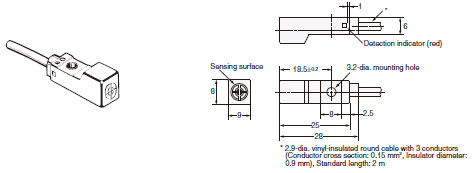

TL-Q2MC1

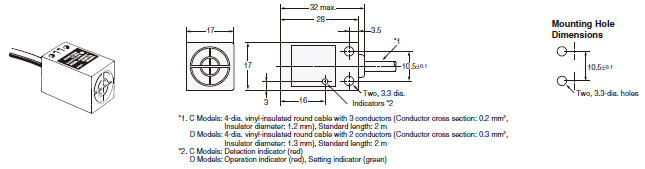

TL-Q5M[][]
![TL-Q5M[][]_Dim](img/462_dm_2.gif)

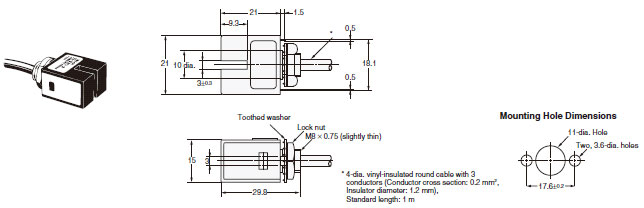

TL-G3D-3

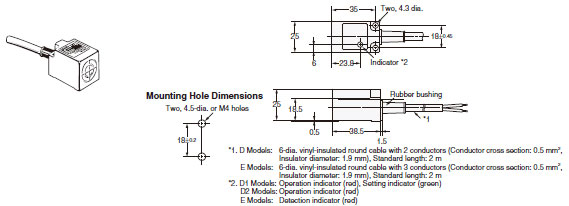

TL-N7MD[], TL-N5ME[]
![TL-N7MD[]_Dim](img/462_dm_4.gif)

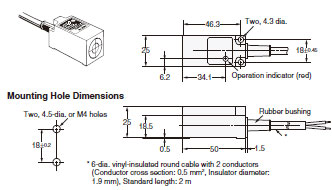

TL-N5MY[]
![TL-N5MY[]_Dim](img/462_dm_5.gif)

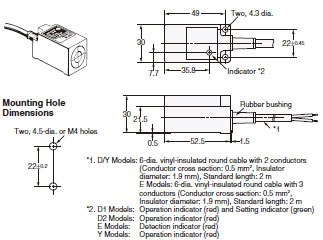

TL-N12MD[], TL-N10ME[], TL-N10MY[]
![TL-N12MD[]_Dim](img/462_dm_6.gif)

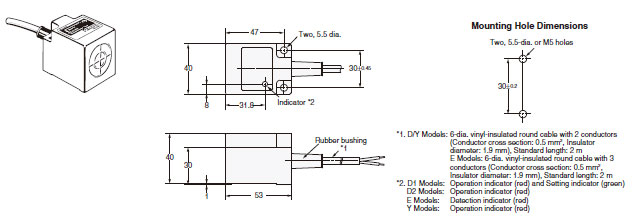

TL-N20MD[], TL-N20ME[], TL-N20MY[]
Accessories (Order Separately)
Mounting Bracket
Y92E-C5
Y92E-C20
Y92E-C10
*1.These are the mounting dimensions of the base of the Mounting Bracket.
*2.Provided with the product.
Mounting Brackets for Wiring Conduit Use (Sold Separately)
Y92E-N5C15
Y92E-N10C15
Caution: All units are in millimeters unless otherwise indicated.
