Cable Amplifier Proximity Sensor

E2EC

High-sensitivity DC 2-Wire Sensors and Subminiature Sensors with Long-distance Detection

Data Sheet (616KB)

Related Contents

Quick links OMRON IA Proximity Sensors in your country.

Europe
- Austria
- Belgium
- Czech Republic
- Denmark
- Finland
- France
- Germany
- Hungary
- Italy
- Latvia
- Lithuania
- Netherlands
- Norway
- Poland
- Portugal
- Russia
- Spain
- Sweden
- Switzerland
- Turkey
- United Kingdom

Middle East

Please contact Europe headquarters.
Africa
- South Africa

Greater China
- China
- Taiwan
Asia-Pacific
- Australia
- India
- Indonesia
- Malaysia
- New Zealand
- Philippines
- Singapore
- Thailand
- Vietnam

Japan / Korea
- Japan
- Korea
Americas

Primary Contents

Sensors

E2EC-CR8D[]

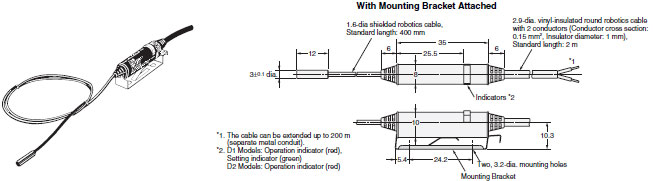

E2EC-CR8D[]_Dim

E2EC-C1R5D[]

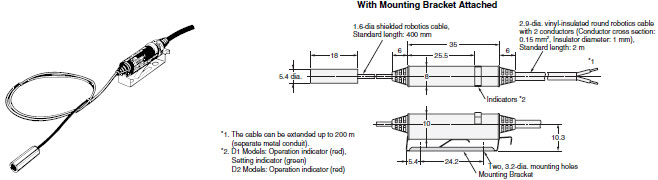

E2EC-C1R5D[]_Dim

E2EC-C3D[]

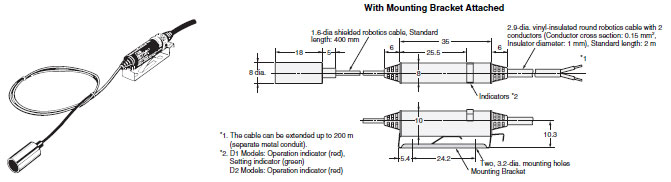

E2EC-C3D[]_Dim

E2EC-X4D[]

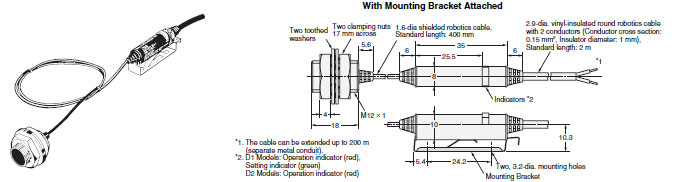

E2EC-X4D[]_Dim

Mounting Hole Dimensions

E2EC_Dim1

E2EC-CR5C1

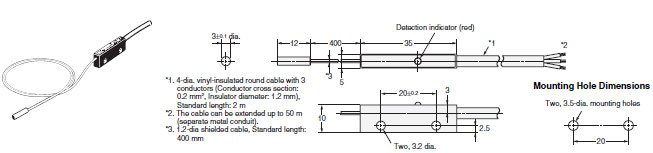

E2EC-CR5C1_Dim

E2EC-C2R5C1

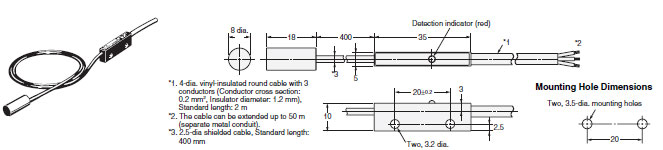

E2EC-C2R5C1_Dim

Mounting Hole Dimensions

E2EC_Dim2

Mounting Bracket

E2EC_Dim3

Material: Stainless steel (SUS301)
Note: Provided with DC 2-Wire Models.

Accessories(Optional)

Mounting Bracket (for 5.4 dia.)
Y92E-F5R4

E2EC_Dim4

Material: Stainless steel (SUS304)
Note: Used for E2EC-C1R5D[] Head.

Caution: All units are in millimeters unless otherwise indicated.
