Mounting Brackets

Y92_Mounting Brackets_Dim1
Y92_Mounting Brackets_Dim2

Note: Consider the influence of surrounding metal when mounting non-shielded Sensors. (Refer to information on individual Sensors for dimensions.)

Mounting Sleeves (Quick Mounting)

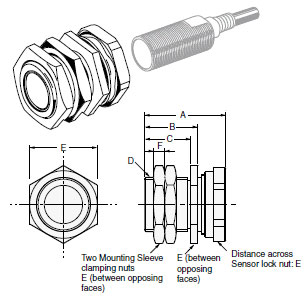

Y92_Mounting Sleeves_Dim1

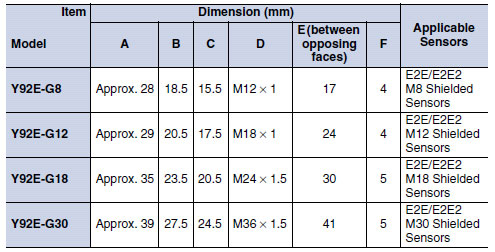

Y92_Mounting Sleeves_Dim2

Protective Covers

Y92_Protective Covers_Dim1
Y92_Protective Covers_Dim2

Sputter Protective Covers (Threaded on Inside of Cover)

Y92_Sputter Protective Covers_Dim1
Y92_Sputter Protective Covers_Dim2

Note: Do not screw on too tightly, or the cap may be damaged.

Sputter Protective Covers (Not Threaded on Inside of Cover)

Y92_Sputter Protective Covers_Dim3
Y92_Sputter Protective Covers_Dim4

Caution: All units are in millimeters unless otherwise indicated.
