SitemapAbsolute 60-mm-dia. Rotary Encoder
E6F-A
Rugged Encoder for High-precision Detection of Automatic Machine Timing
Data Sheet (552KB)
Quick links to 'E6F-A' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
E6F-A Pick up
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Encoder

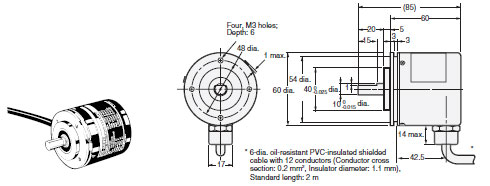

E6F-AB3C, E6F-AB5C
E6F-AG5C, E6F-AG5B
E6F-AB5B
The E69-C10B Coupling is provided.

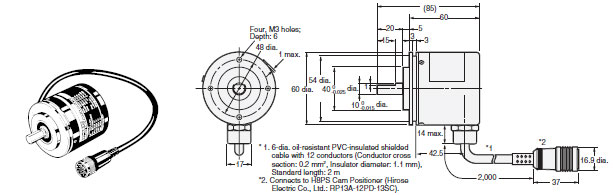

E6F-AB3C-C, E6F-AB5C-C
E6F-AG5C-C
The E69-C10B Coupling is sold separately.
Accessories (Order Separately)

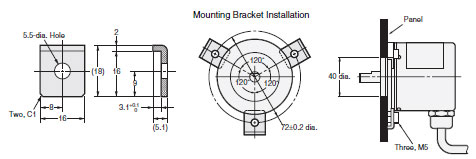

Servo Mounting Bracket
E69-2
Note: Provided with the product.

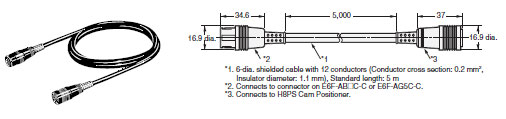

Extension Cable
E69-DF5
Note:
1.The E69-DF5 (5 m) is also available with the following cable lengths: 10 m, 15 m, 20 m, and 98 m.
2.Cable can be extended to 100 m when the H8PS Cam Positioner is connected.
Caution: All units are in millimeters unless otherwise indicated.
