SitemapEasy Scale Linear Encoder
E6L
Ideal for Conveyance Applications:Easy Scale
Data Sheet (214KB)
Quick links OMRON IA Rotary Encoders in your country.
-
- Middle East
-
Please contact Europe headquarters.
Linear Encoder

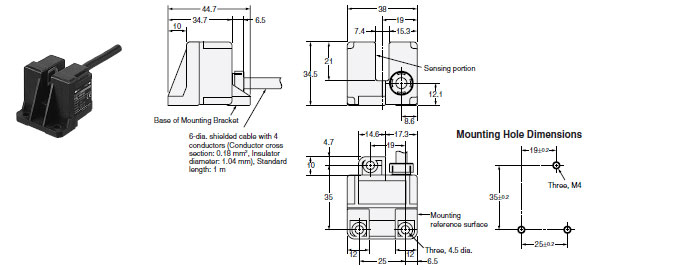

E6L-HW4C

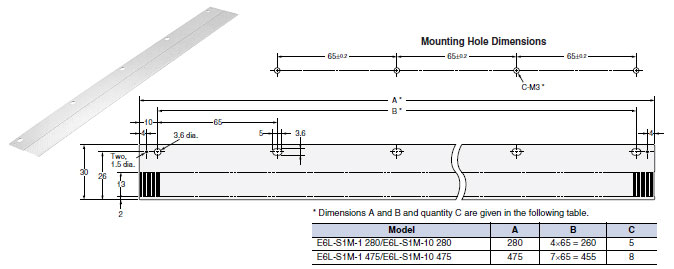

Detection Scales
E6L-S1M-1 280
E6L-S1M-10 280
E6L-S1M-1 475
E6L-S1M-10 475
Material: Stainless steel (SUS304)
Thickness: 0.3 mm
Mounting Dimensions

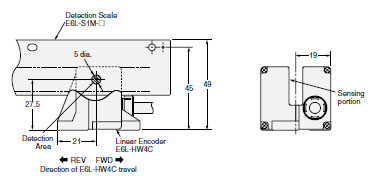

E6L-HW4C + E6L-S1M-[]
![E6L-HW4C+E6L-S1M-[]_Dim](img/E6L_dm_6.jpg)
Note: The directions of travel given on the
nameplate of the E6L-HW4C ("FWD" and
"REV") indicate the direction of E6L-HW4C
travel relative to the E6L-S1M, regardless
of whether the E6L-HW4C or E6L-S1M
actually moves. (That is, the Detection
Scale is the reference for these indications.)
Caution: All units are in millimeters unless otherwise indicated.
