D5C

DC Models

Coil Spring

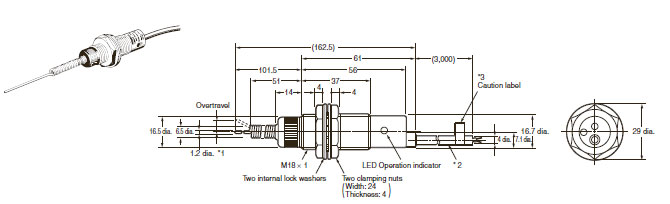

D5C-1DS0

^*1. The stainless steel wire actuator can move in any direction. However, limit the overtravel to within 20 mm from the free position. The force that pushes the actuator must not exceed 1.96 N.

^*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm².

^*3. Use after removing the caution label.

Plunger

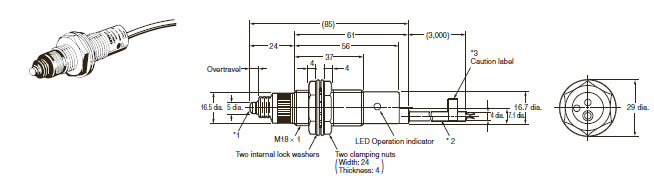

D5C-1DP0

^*1. The overtravel of the stainless steel plunger is within 3.5 mm. Do not apply a force greater than 9.8 N to the plunger.

^*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm².

^*3. Use after removing the caution label.

Free-attachment

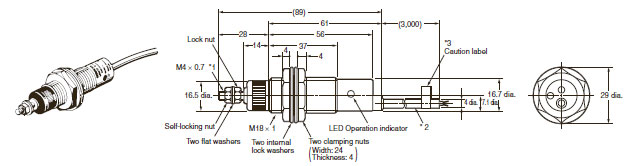

D5C-1DA0

^*1. Limit the total length of actuator wire to 1 m or less. When mounting the Switch to a metal plate, do not exceed an area of 200 cm².

^*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.2 mm².

^*3. Use after removing the caution label.

AC Models

Coil Spring

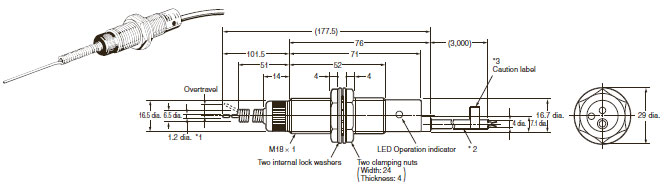

D5C-1AS0

^*1. The stainless steel wire actuator can move in any direction. However, limit the overtravel to within 20 mm from the free position. The force that pushes the actuator must not exceed 1.96 N.

^*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm².

^*3. Use after removing the caution label.

Plunger

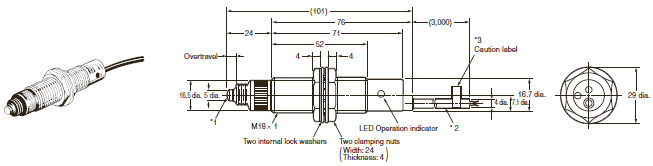

D5C-1AP0

^*1. The overtravel of the stainless steel plunger is within 3.5 mm. Do not apply a force greater than 9.8 N to the plunger.

^*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm².

^*3. Use after removing the caution label.

Free-attachment

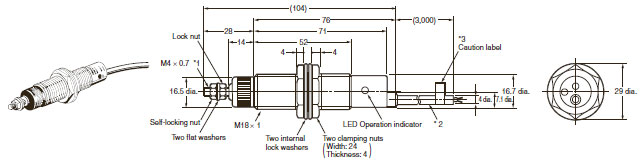

D5C-1AA0

^*1. Limit the total length of actuator wire to 1 m or less. When mounting the Switch to a metal plate, do not exceed an area of 200 cm².

^*2. Vinyl insulated round cable (oil- and shock-resistant type)
4 dia., three conductors × 0.3 mm².

^*3. Use after removing the caution label.
