Sensing Band/Liquid Leakage Point Sensor

F03-16PE / -16PT / -15 / -16PS

F03-16PE / -16PT / -15 / -16PS

A New Liquid Leakage Point Sensor Has Been Added to the K7L Series. Fluoroplastic Coating on the Bottom Electrode Ensures Chemical Resistance.

Related Contents

Primary Contents



F03-16PE
Sensing Band

Sensing Band

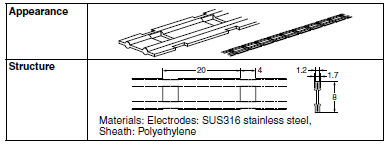

F03-16PE_Dim1

Sensing Band Stickers

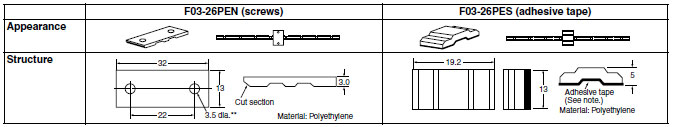

F03-16PE_Dim2

Note: The shape of the adhesive tape shown above is for securing the F03-16PE.

F03-16PT
Sensing Band

Sensing Band

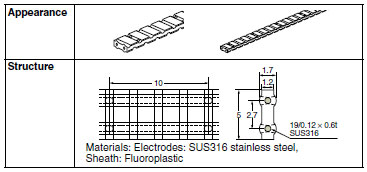

F03-16PT_Dim3

Sensing Band Stickers

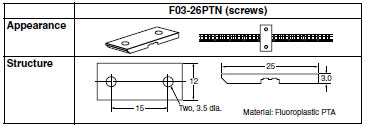

F03-16PT_Dim4

Note: The shape of the adhesive tape shown above is for securing the F03-16PE.

F03-15
Sensing Band

Sensing Band

F03-15_Dim5

Sensing Band Stickers

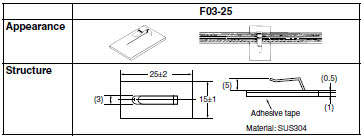

F03-15_Dim6

F03-16PS
Liquid Leakage Point Sensor

Liquid Leakage Point Sensor

F03-16PS
F03-16PS-F

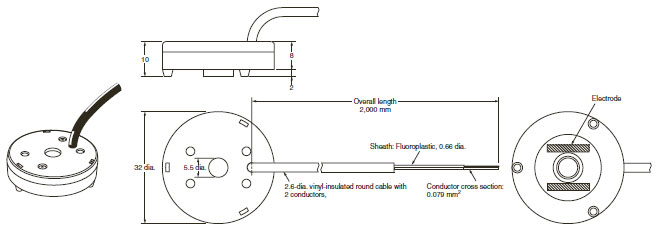

F03-16PS_Dim

Note:
1. The Terminal Block is made of nylon 66. Mount the Terminal Block in locations not subject to liquid chemicals using M3 screws.
2. Secure the Sockets with M3 screws at a torque of 0.78 to 1.18 Nm.

Point Sensor Mounting Bracket

F03-26PS

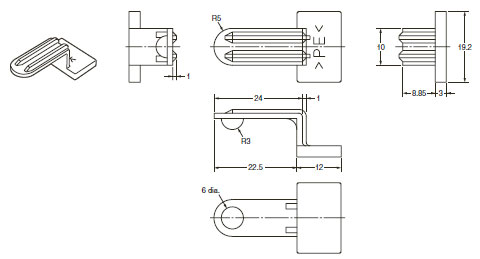

F03-26PS_Dim

Caution: All units are in millimeters unless otherwise indicated.
