SitemapSwitch Mode Power Supply (3/7.5-W Models)
S82S
Data Sheet (1007KB)
Quick links to 'S82S' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
S82S Pick up
S82S-73[][] (3 W)
S82S-77[][] (7.5 W)

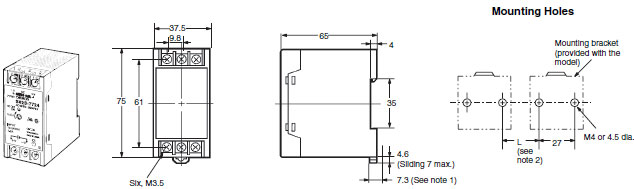

![S82S-73[][]_Dim](img/s82s_dm_1.gif)
*A distance of 7.3 mm is required between the model and the mounting surface when the mounting bracket provided with the model is used.
Note:If more than one Power Supply is installed in a row, keep a distance of 20 mm min. (L = 20 mm min.) between each adjacent Power Supply.
Accessories
Mounting Bracket
Used when not mounting the Power Supply directly on the DIN Rail.
Caution: All units are in millimeters unless otherwise indicated.
