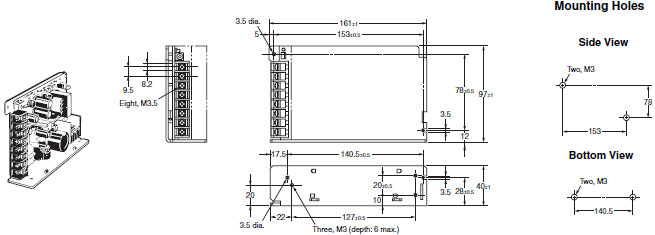

S82R-[]3[][] (30W)

S82R-3_Dim

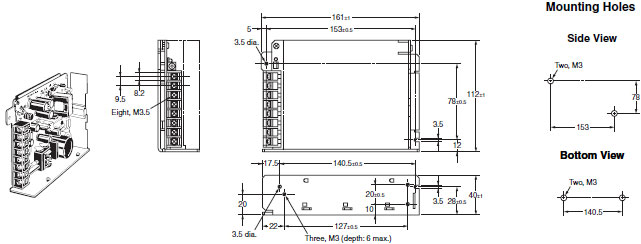

S82R-[]5[][] (50W)

S82R-5_Dim

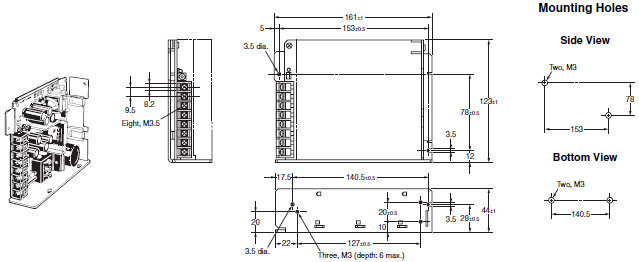

S82R-[]7[][] (75W)

S82R-7_Dim

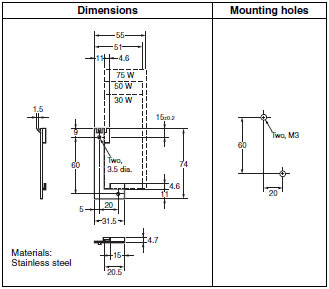

Front Mounting Bracket

S82R_Dim1

Front Mounting

Attach the enclosed Mounting Bracket temporarily to the mounting
surface, the hook the rectangular holes on the Power Supply (a) on
the hooks on the Bracket (b), and then tighten the two mounting
screws.

Note: The mounting screws are not included.

S82R_Dim2

Caution: All units are in millimeters unless otherwise indicated.
