SitemapVoltage Sensor
SDV
Overvoltage/Undervoltage Monitoring Relay for AC and DC Input
Data Sheet (574KB)
Quick links OMRON IA Measuring / Motor Protective Relays in your country.
-
- Middle East
-
Please contact OMRON Europe B.V. in Netherlands.
Sensors

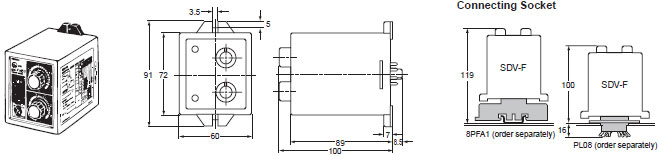

SDV-F[][]/SDV-FH[]T
![SDV-F[][]/SDV-FH[]T_Dim](img/SDV_dm_1.jpg)

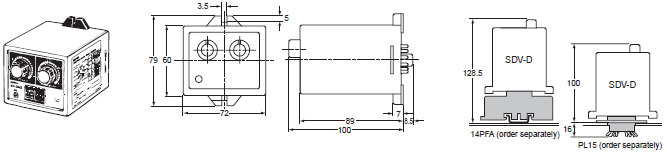

SDV-D[][]
![SDV-D[][]_Dim](img/SDV_dm_2.jpg)
Shunts(Optional)
SDV-SH5 to SDV-SH50 (60-mV Rating)
SDV-SH75 to SDV-SH200 (60-mV Rating)

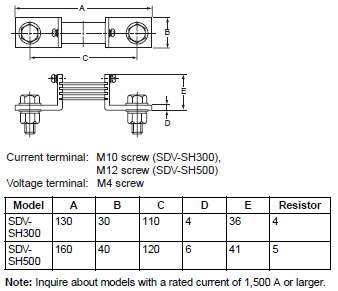

SDV-SH300/-SH500 (60-mV Rating)

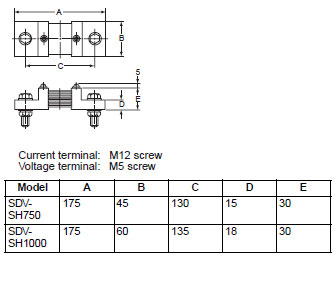

SDV-SH750/-SH1000 (60-mV Rating)
Accessories (Optional)
Front Connecting Socket

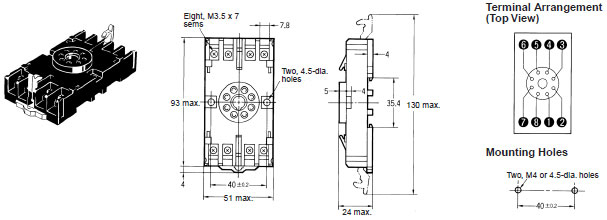

8PFA1

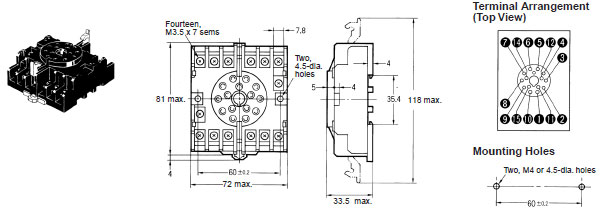

14PFA
Back Connecting Socket (Solder Terminal)

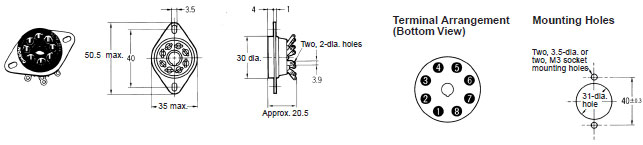

PL08
PL15
Mounting Track
PFP-100N
PFP-50N

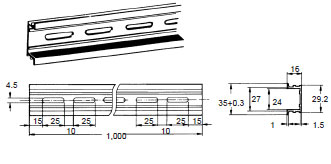

PFP-100N2
End Plates
Spacers
PFP-M
PFP-S
Caution: All units are in millimeters unless otherwise indicated.
