SitemapI/O Relay
G7T
Data Sheet (717KB)
Quick links to 'G7T' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
G7T Pick up
I/O Relay
SPST-NO Type
G7T-1122S (for input)
G7T-1112S (for output)
SPST-NC Type
G7T-1012S (for output)
SPDT Type
G7T-112S (for output)
Note:This Relay cannot be used as an I/O relay terminals and must be used in combination with the exclusive P7TF-05 Socket.
Accessories
Socket

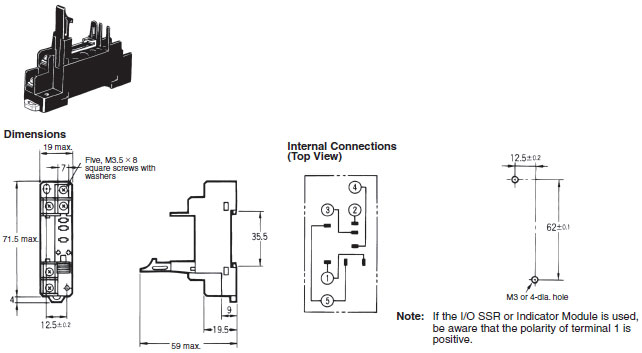

P7TF-05
Note:If the I/O SSR or Indicator Module is used, be aware that the polarity of terminal 1 is positive.
*We recommend that you insert washers when mounting with M3 screws. A washers are not required when mounting with M4 screws.
Indicator Module (with Surge Suppressing Function)
P70
Caution: All units are in millimeters unless otherwise indicated.
