Open Relays with Solder Terminals
MM2(X)K,MM3(X)K,MM4(X)K
Note:Connect the common (C) of MM[]XK to positive (+).
Open Relays with Screw Terminals
MM2(X)KB,MM3(X)KB,MM4(X)KB
Note:Connect the common (C) of MM[]XKB to positive (+).
Mounting Holes (Direct Mounting)
Note:The tolerance is ±0.2.

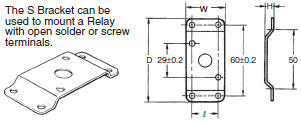

Mounting Bracket (S Bracket)
R99-03 (S KANAGU) FOR MM[]
![R99-03 (S KANAGU) FOR MM[]_Dim](img/mmk_dm_4.jpg)
Cased Relays with Plug-in Terminal
MM2(X)KP
Note:It is recommended that 55 mm min. is allowed SET for this side because the MM2XKP has a curved protective plate on the side.
MM3(X)KP,MM4(X)KP
MM4KP-JD
MM4XKP-JD
Caution: All units are in millimeters unless otherwise indicated.
