SitemapPower Relay
G7J
A High-capacity, High-dielectric-strength, Multi-pole Relay Used Like a Contactor
Data Sheet (372KB)
Quick links OMRON IA General Purpose Relays in your country.
-
- Middle East
-
Please contact OMRON Europe B.V. in Netherlands.
G7J Pick up
Screw Terminals with W-bracket
G7J-4A-B, G7J-4A-BZ, G7J-3A1B-B, G7J-3A1B-BZ, G7J-2A2B-B
Quick-connect Terminals with W-bracket
G7J-4A-T, G7J-4A-TZ, G7J-3A1B-T, G7J-3A1B-TZ, G7J-2A2B-T
PCB Terminals with PCB Mounting
G7J-4A-P, G7J-4A-PZ, G7J-3A1B-P, G7J-3A1B-PZ, G7J-2A2B-P

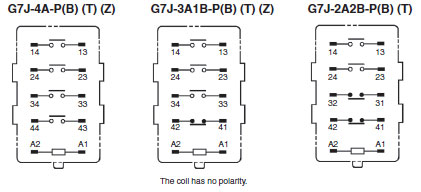

Terminal Arrangement/Internal Connections
Note: Terminals 43 and 44 of the G7J-4A-P(B)(T)(Z) and contacts 41 and 42 of the G7J-3A1B-P(B)(T)(Z) are bifurcated contacts.
Accessories (Optional)
R99-04 W-bracket (for G5F)
Caution: All units are in millimeters unless otherwise indicated.
