SitemapSolid State Contactors (Three-phase)
G3PB-2 / -3
Compact, Low-cost Solid State Contactors of an Innovative Construction Ideal for Three-phase Heaters
Data Sheet (1792KB)
Quick links to 'G3PB-2 / -3' page in your country / territory.
-
- Middle East
-
Please contact our European headquarters.
Get more support via Products links, such as manuals and CAD files.
G3PB-2 / -3 Pick up
Models with Built-in Heat Sinks

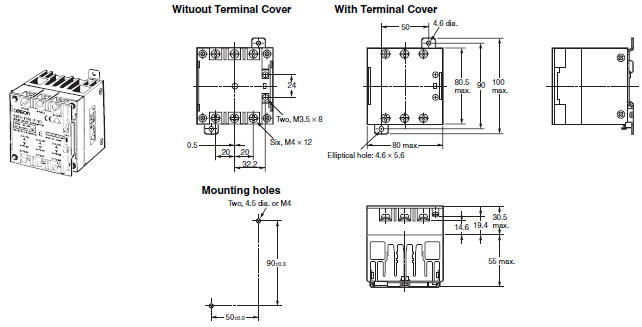

G3PB-215B-2-VD
G3PB-415B-2-VD

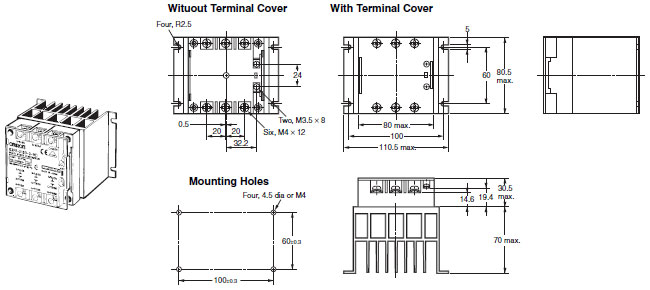

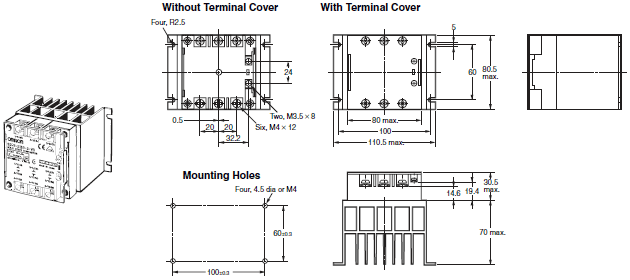

G3PB-215B-3-VD
G3PB-225B-2-VD
G3PB-415B-3-VD
G3PB-425B-2-VD

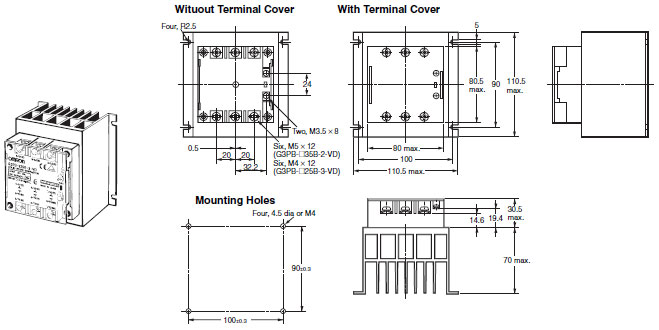

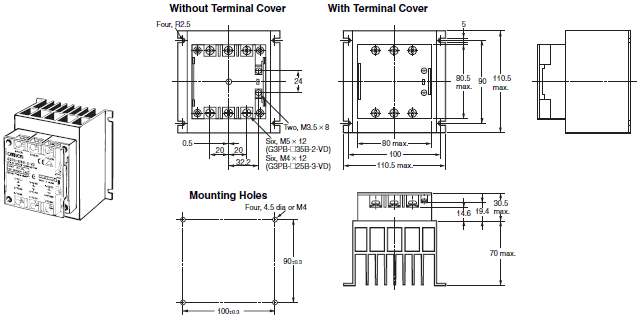

G3PB-225B-3-VD
G3PB-235B-2-VD

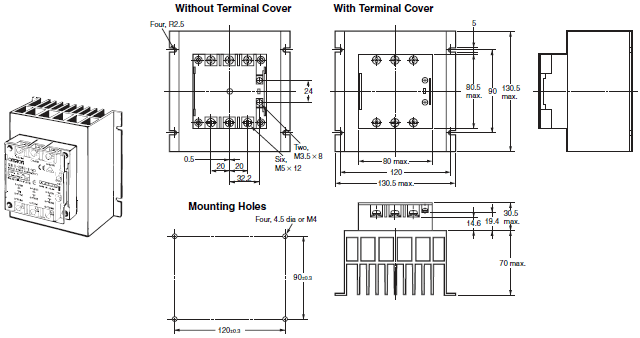

G3PB-425B-3-VD
G3PB-435B-2-VD

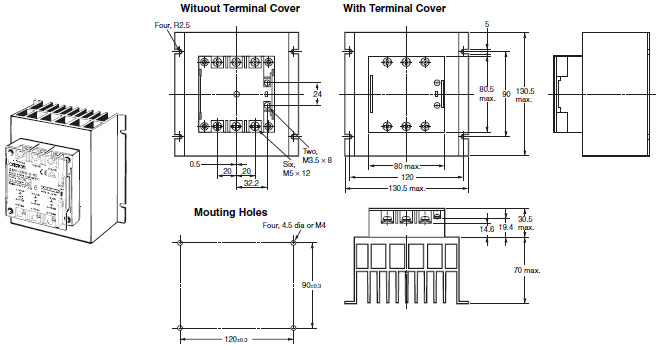

G3PB-235B-3-VD
G3PB-245B-2-VD
G3PB-435B-3-VD
G3PB-445B-2-VD

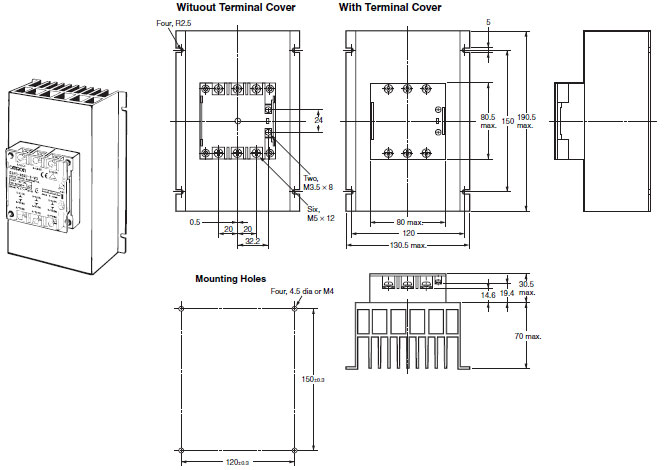

G3PB-245B-3-VD
G3PB-445B-3-VD
Models without Built-in Heat Sinks

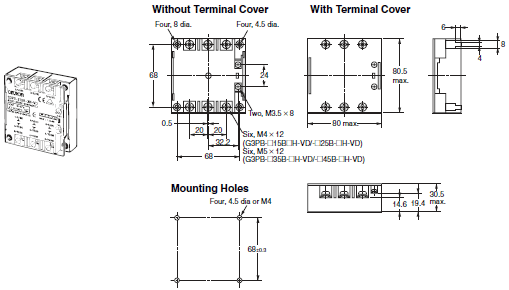

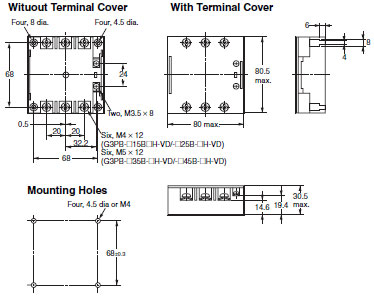

G3PB-215B-3H-VD
G3PB-215B-2H-VD
G3PB-225B-3H-VD
G3PB-225B-2H-VD
G3PB-235B-3H-VD
G3PB-235B-2H-VD
G3PB-245B-3H-VD
G3PB-245B-2H-VD
G3PB-415B-3H-VD
G3PB-415B-2H-VD
G3PB-425B-3H-VD
G3PB-425B-2H-VD
G3PB-435B-3H-VD
G3PB-435B-2H-VD
G3PB-445B-3H-VD
G3PB-445B-2H-VD
Heat Sinks

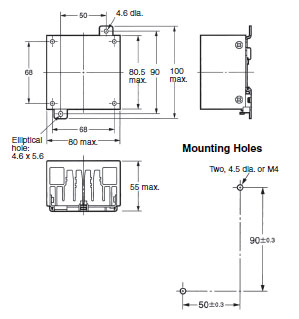

Y92B-P50
For model
G3PB-215B-2H-VD
G3PB-415B-2H-VD

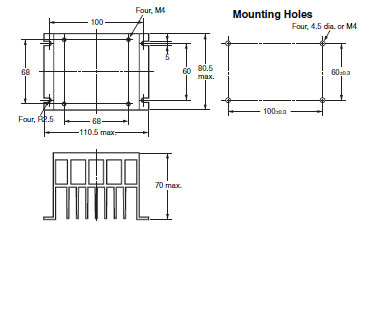

Y92B-P100
For model
G3PB-215B-3H-VD
G3PB-225B-2H-VD
G3PB-415B-3H-VD
G3PB-425B-2H-VD

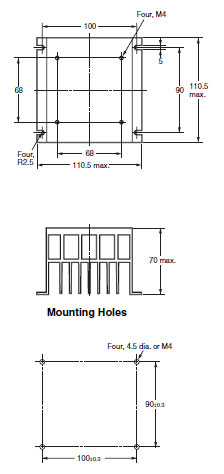

Y92B-P150
For model
G3PB-225B-3H-VD
G3PB-235B-2H-VD
G3PB-425B-3H-VD
G3PB-435B-2H-VD

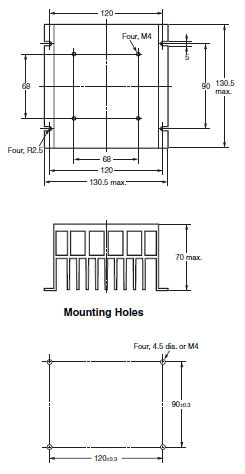

Y92B-P200
For model
G3PB-235B-3H-VD
G3PB-245B-2H-VD
G3PB-435B-3H-VD
G3PB-445B-2H-VD

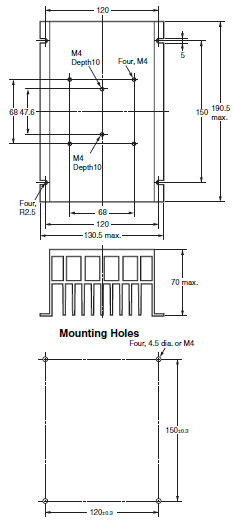

Y92B-P250
For model

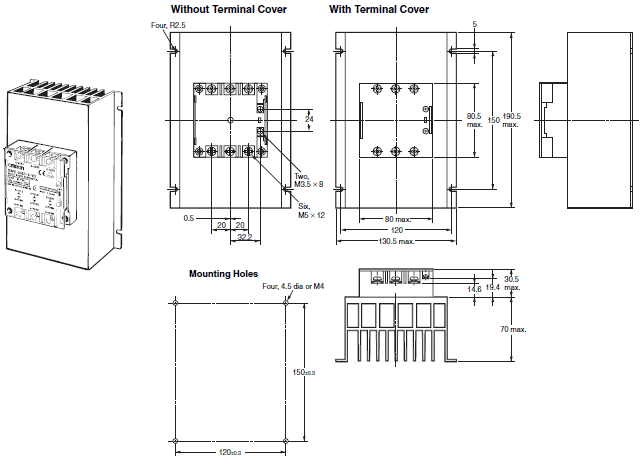

G3PB-245B-3-VD
G3PB-445B-3-VD
Accessories (Order Separately)
Mounting Tracks
PFP-100N, PFP-50N
Note:Values in parentheses indicate dimensions for the PFP-50N.
PFP-100N2
Caution: All units are in millimeters unless otherwise indicated.
