E3S-CL2 2M

Distance-settable Photoelectric Sensor with Metal Case


Distance-setting, Sensing distance: 5 to 500 mm, Light-ON/Dark-ON selectable, NPN/PNP output, Pre-wired models (2 m)

Sensing method Distance-setting
Sensing distance 5 to 500 mm (White paper 200 x 200 mm, setting distance: 500 mm)
Light source Infrared LED (860 nm)
Connection method Pre-wired models (Cable length: 2 m

Item list of E3S-CL

ShapeSquare type
Sensing methodDistance-setting
Sensing distance5 to 500 mm (White paper 200 x 200 mm, setting distance: 500 mm)
Setting range50 to 500 mm
Differential distance10% max. of setting distance
Reflectivity characteristic (black-white error)10% max. of setting distance
Light sourceInfrared LED (860 nm)
Power supply voltage10 to 30 VDC ripple (p-p) 10% included
Current consumption50 mA max.
Control outputNPN/PNP open collector output
30 VDC max.
Load current: 100 mA max.
Residual voltage: 1.2 V max. (NPN output), 2 V max. (PNP output)
Operation modeLight-ON/Dark-ON selectable
Protective circuitOutput short-circuit protection, Power supply reverse polarity protection, Mutual interference prevention
Response time2 ms max.(Operate or reset)
Sensitivity setting6-turn endless adjustment (with indicator)
Ambient illuminanceIncandescent lamp: 5000 lux max., Sunlight: 10000 lux max.
Ambient temperatureOperating: -25 to 55℃
Storage: -40 to 70℃
Ambient humidityOperating: 35 to 85%
Storage: 35 to 95%
Insulation resistance20 MΩ min. (at 500 VDC)
Dielectric strength1000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP67
NEMA: 6P (indoors only)
Company standard: Oil-proof
Connection methodPre-wired models (Cable length: 2 m
IndicatorLight indicator (orange), Stability indicator (green)
WeightPackage: Approx. 170 g
AccessoriesInstruction manual, Mounting bracket, Adjustment driver, Hexagon bolt M4 x 12 (with Spring washers, Flat washers)
MaterialCase: Zinc diecast
Lens: Methacrylate resin
Cover: Polyether sulfone
Mounting bracket: Stainless steel (SUS304)
  • Dimensions

  • Output circuit diagram

Timing chart

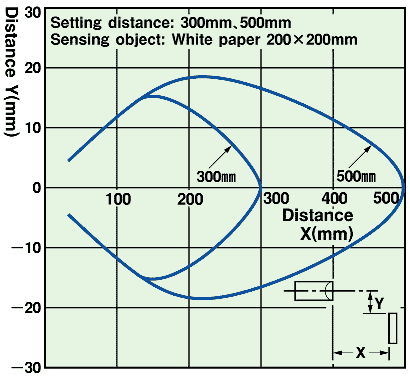

  • Operating range

  • Setting distance

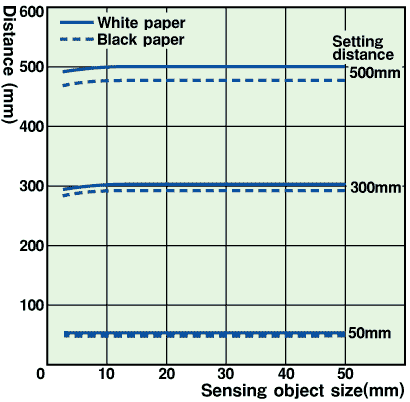

Sensing object size vs. setting distance
