E2EY-X4C1 2M

Aluminum-detecting Proximity Sensor


Shielded, Cylinder typeM18, DC Three-wires models, Sensing distance 4 mm, Operation mode NO, NPN open collector, Pre-wired models (2 m)

Sensing head size M18
Type Cylinder type (with screw)、Shielded
Sensing distance 4 mm ±10%
Setting distance 0 to 2.8 mm
Operation mode NO

Item list of E2EY

  • Ratings/Performance
Sensing head sizeM18
TypeCylinder type (with screw)、Shielded
Sensing distance4 mm ±10%
Setting distance0 to 2.8 mm
Differential distance20% max. of sensing distance
Sensing objectNon-ferrous metal (Ferrous metal is not detected.)
Standard sensing objectAluminum 18 x 18 x 1 mm
Response frequency70 Hz (Average value)
Power sourceDC Three-wires models
Power supply voltage12 to 24 VDC (ripple (p-p) 10% max.)
Operating voltage range10 to 30 VDC
Current consumption20 mA max.
Control output (Output type)NPN open collector
Control output (Switching capacity)at 30 VDC: 100 mA max.
Control output (Residual voltage)2 V max. (Load current 100 mA with cable length of 2 m)
IndicatorDetection indicator (red)
Operation modeNO
Protective circuitOutput short-cut protection
Power supply reverse polarity protection
Surge suppressor
Ambient temperatureOperating: -10 to 55℃
Storage: -10 to 55℃
Ambient humidityOperating: 35 to 95%
Storage: 35 to 95%
Temperature influence±20% max. of sensing distance at 23 ℃ in the temperature range of -10 to 55 ℃
Voltage influence±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistanceBetween charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strengthBetween charged parts and the case: 1000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 1000 m/s**2 10 times each in X, Y, and Z directions
Degree of protectionIEC: IP67
Company standard: Oil-proof
Connection methodPre-wired models (Cable length: 2 m)
WeightPackage: Approx. 140 g
MaterialCase: Brass nickel plating
Sensing surface: Heat-resistant ABS resin
Clamping nuts: Brass nickel plating
Toothed washers: Iron zinc plating

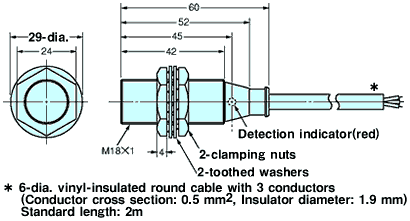

  • Dimensions

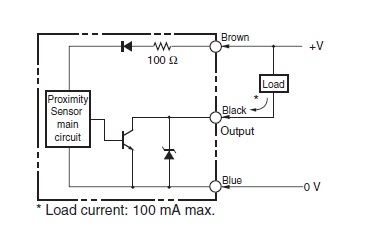

  • Output circuit

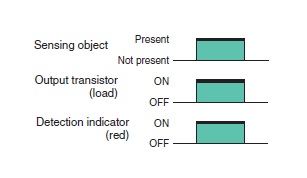

Timing chart

  • Mutual interference

A: 50 mm min., B: 35 mm min.

  • Effects of surrounding metals

l: 0 mm min., dia. d: 18 mm min., D: 0 mm min., m: 20 mm min., n: 27 mm min.

  • Characteristic chart

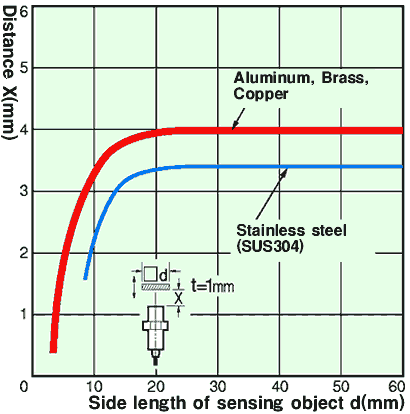

Sensing distance vs. size and material of sensing object

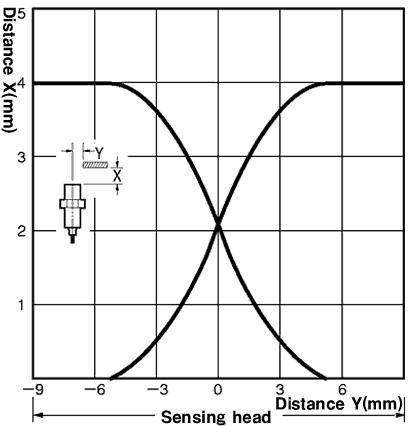

Sensing range
