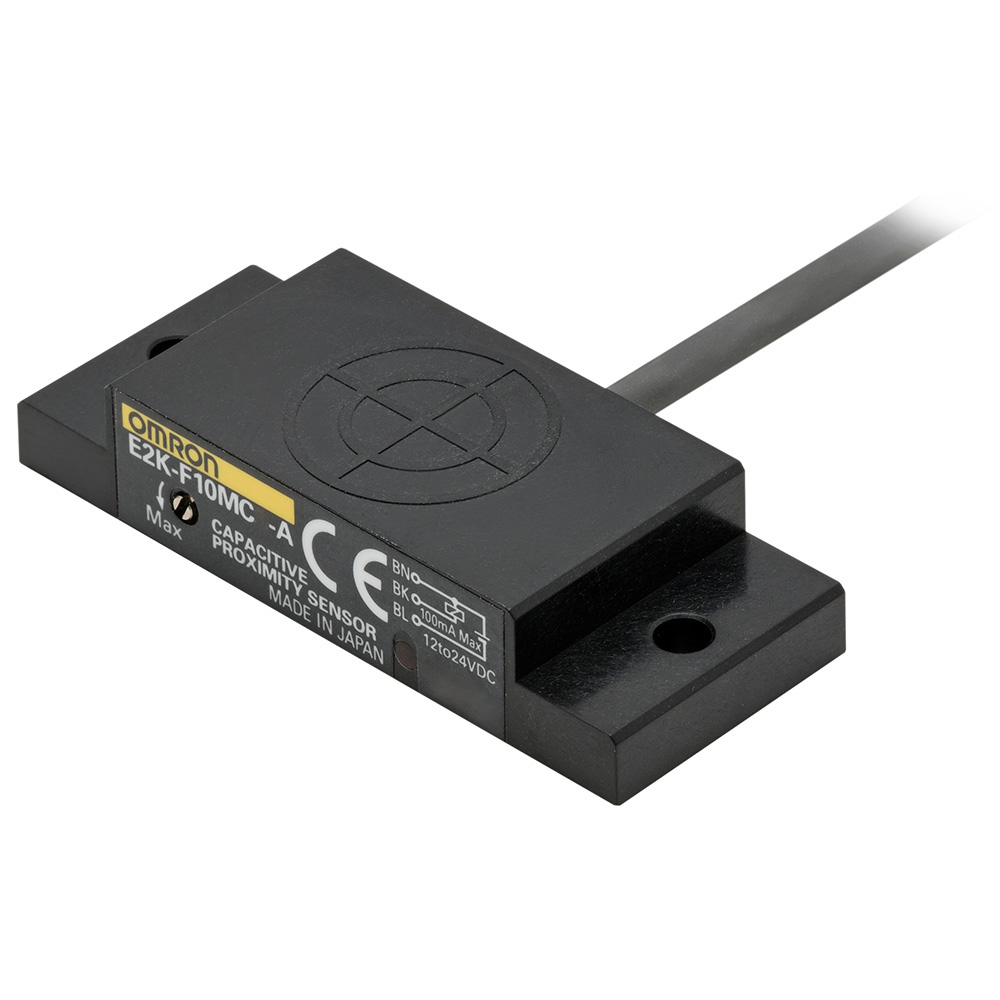

E2K-F10MC1-A 2M

Flat Proximity Sensor


Capacitive type, Unshielded, Square type, DC Three-wires models, Sensing distance 10 mm, Operation mode NO, NPN open collector, Pre-wired models (2 m)

Sensing head size 50 mm x 10.1 mm x 20 mm
Type Square type、Capacitive type、Unshielded
Sensing distance 10 mm
Setting distance 0 to 7.5 mm
Operation mode NO

Item list of E2K-F

  • Ratings/Performance
Sensing head size50 mm x 10.1 mm x 20 mm
TypeSquare type、Capacitive type、Unshielded
Sensing distance10 mm
Setting distance0 to 7.5 mm
Differential distance15% max. of sensing distance
Sensing objectConductor and dielectrics
Standard sensing objectWith grounded metal 50 x 50 x 1 mm
Response frequency100 Hz
Power sourceDC Three-wires models
Power supply voltage12 to 24 VDC (ripple (p-p) 10% max.)
Operating voltage range10 to 30 VDC
Current consumptionat 24 VDC: 10 mA max.
Control output (Output type)NPN open collector
Control output (Switching capacity)at 30 VDC: 100 mA max.
Control output (Residual voltage)1.5 V max. (Load current 100 mA with cable length of 2 m)
IndicatorDetection indicator (red)
Operation modeNO
Sensitivity setting12-turn adjustment
Protective circuitReverse polarity protection
Surge suppressor
Ambient temperatureOperating: -10 to 55℃
Storage: -10 to 55℃
Ambient humidityOperating: 35 to 85%
Storage: 35 to 85%
Temperature influence±15% max. of sensing distance at 23 ℃ in the temperature range of -10 to 55 ℃
Voltage influence±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistanceBetween charged parts and the case: 5 MΩ min. at 500 VDC
Dielectric strengthBetween charged parts and the case: 500 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP64
Connection methodPre-wired models (Cable length: 2 m)
WeightPackage: Approx. 35 g
MaterialCase: Heat-resistant ABS resin
Sensing surface: Heat-resistant ABS resin
AccessoriesInstruction manual
  • Dimensions

  • Output circuit

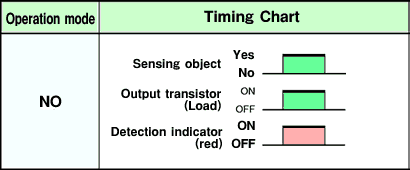

Timing chart

  • Sensing range

  • Sensing distance vs. size and material of sensing object

  • Mutual interference

  • Effects of surrounding metals
