GLS-1

Magnetic Proximity Sensor


Magnetic proximity sensor, Terminal block models

Sensing head size 50 mm x 14 mm x 14 mm
Type Square type, Magnetic type
Sensing distance 15 mm

Item list of GLS

  • Ratings/Performance
Sensing head size50 mm x 14 mm x 14 mm
TypeSquare type, Magnetic type
Sensing distance15 mm
Response frequency20 Hz max.
Ambient temperature (Operating)-20 to 60 ℃
Ambient temperature (Storage)-20 to 60 ℃
Ambient humidity (Operating)35 to 85 %
Ambient humidity (Storage)35 to 85 %
Dielectric strengthBetween each terminals and the case: 1,000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 300 m/s2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP40
Connection methodTerminal block models
MaterialSensor: ABS
Magnet: ABS
  • Dimensions

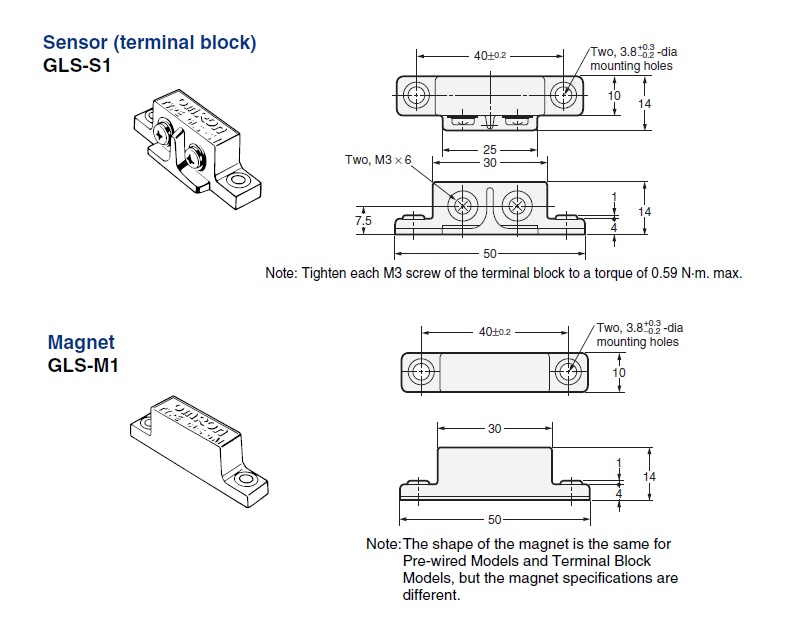

Dimensions

  • Characteristic chart

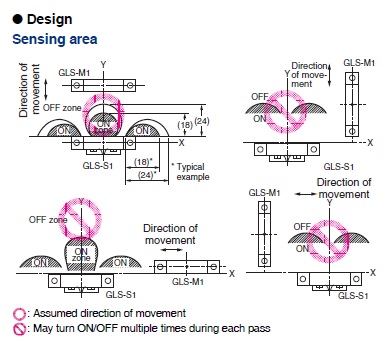

Sensing range
