EE-SX672-WR 1M

Slot-type Photomicrosensor with connector or pre-wired models (Non-modulated)*1


Non-modulated Through-beam type, Grooved Type (T-shaped) Appearance (Slot center 7 mm), Pre-wired models (1m), Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN Open collector output

Type Grooved Type (T-shaped) (Slot center 7 mm)
Luminous method Non-modulated
Sensing method Through-beam type
Sensing distance 5 mm (slot width)
Operation mode Dark-ON/Light-ON (selectable)
Control output (Output type) NPN Open collector output
Connection method Pre-wired models

Item list of EE-SX47 / SX67

  • Ratings/Performance
TypeGrooved Type (T-shaped) (Slot center 7 mm)
Luminous methodNon-modulated
Sensing methodThrough-beam type
Sensing distance5 mm (slot width)
Operation modeDark-ON/Light-ON (selectable)
Standard sensing objectOpaque object (2 x 0.8 mm min.)
Differential distance elements0.025 mm max.
Light source (Peak wavelength)Infrared LED (940 nm)
IndicatorLight indicator (red)
Power supply voltage5 to 24 VDC ±10% (ripple (p-p)10% max.)
Current consumption35 mA max.
Control output (Output type)NPN Open collector output
Control output (Load power supply voltage)5 to 24 VDC
Control output (Load current)100 mA max.
Control output (Residual voltage)0.8 V max. (at 100 mA load current)
0.4 V max. (at 40 mA load current)
Response frequency elements1 kHz min. (average 3 kHz)
(See "Measurement condition of Response frequency elements")
Illumination on the surface receiverFluorescent light: 1000 lx max.
Ambient temperatureOperating: -25 to 55 ℃
Storage: -30 to 80 ℃
(with no icing or condensation)
Ambient humidityOperating: 5 to 85% RH
Storage: 5 to 95% RH
(with no icing or condensation)
Vibration resistance20 to 2000 Hz, peak acceleration 100 m/s**2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods)
Shock resistance500 m/s**2, 3 times each in X, Y, and Z directions
Degree of protection (IEC60529)IP50
Connection methodPre-wired models
Cable length1 m
MaterialCase: Polybutylene phthalate (PBT)
Emitter/Receiver Cover: Polycarbonate(PC)

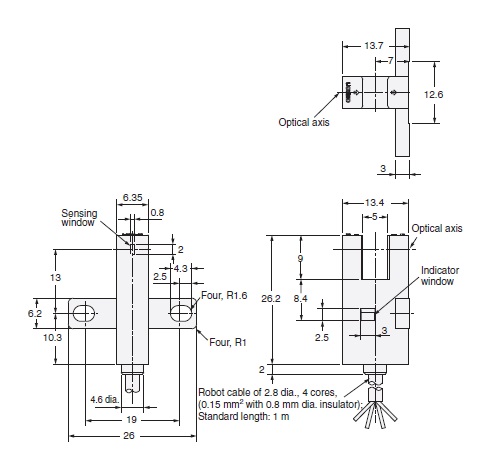

  • Dimensions

Caution: All_units are in millimeters unless otherwise indicated.

Terminal array

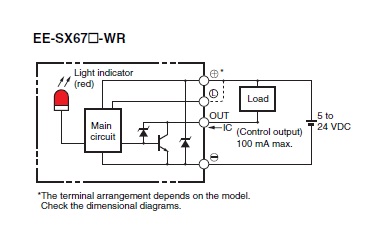

  • I/O Circuit diagram

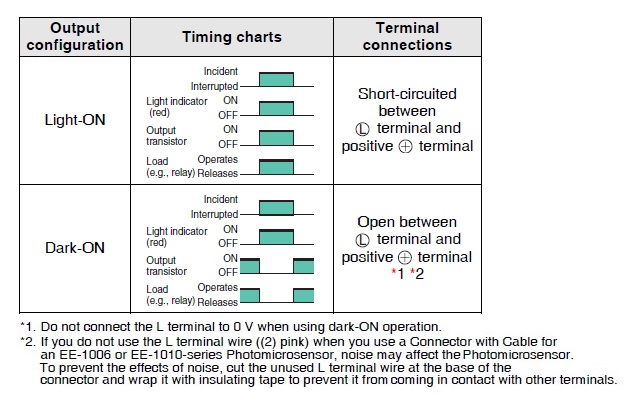

Timing chart

  • Measurement condition of Response frequency elements

  • Engineering Data (Typical)
