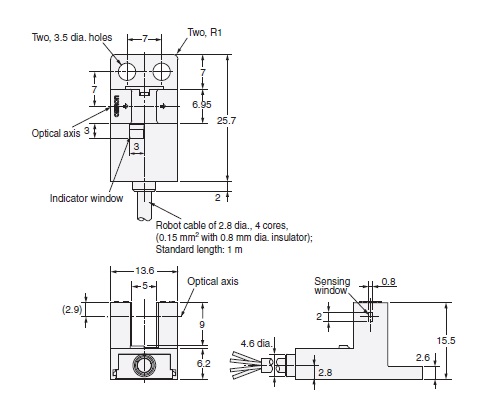

EE-SX674-WR 1M

Slot-type Photomicrosensor with connector or pre-wired models (Non-modulated)*1


Non-modulated Through-beam type, Grooved Type (Close-mounting) Appearance, Pre-wired models (1m), Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN Open collector output

As of October 10, 2017


Type	Grooved Type (Close-mounting)
Luminous method	Non-modulated
Sensing method	Through-beam type
Sensing distance	5 mm (slot width)
Operation mode	Dark-ON/Light-ON (selectable)
Standard sensing object	Opaque object (2 x 0.8 mm min.)
Differential distance elements	0.025 mm max.
Light source （Peak wavelength）	Infrared LED (940 nm)
Indicator	Light indicator (red)
Power supply voltage	5 to 24 VDC ±10% (ripple (p-p)10% max.)
Current consumption	35 mA max.
Control output （Output type）	NPN Open collector output
Control output （Load power supply voltage）	5 to 24 VDC
Control output （Load current）	100 mA max.
Control output （Residual voltage）	0.8 V max. (at 100 mA load current) 0.4 V max. (at 40 mA load current)
Response frequency elements	1 kHz min. (average 3 kHz) （See "Measurement condition of Response frequency elements"）
Illumination on the surface receiver	Fluorescent light: 1000 lx max.
Ambient temperature	Operating: -25 to 55 ℃ Storage: -30 to 80 ℃ （with no icing or condensation）
Ambient humidity	Operating: 5 to 85% RH Storage: 5 to 95% RH （with no icing or condensation）
Vibration resistance	20 to 2000 Hz, peak acceleration 100 m/s**2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods)
Shock resistance	500 m/s**2, 3 times each in X, Y, and Z directions
Degree of protection （IEC60529）	IP50
Connection method	Pre-wired models
Cable length	1 m
Material	Case: Polybutylene phthalate (PBT) Emitter/Receiver Cover: Polycarbonate(PC)
