E3S-DCN21

Color Mark Photoelectric Sensor


Color Mark Photoelectric Sensor, Diffuse-reflective (mark detection), Sensing distance 7 to 13 mm, NPN

Sensing method	Diffuse-reflective (mark detection)
Sensing distance	White paper 10 x 10 mm: 7 to 13 mm
Light source	Red LED (635 nm) Green LED (525 nm) Blue LED (465 nm)
Connection method	M12 connector models

Item list of E3S-DC

Ratings/Performance
Dimensions

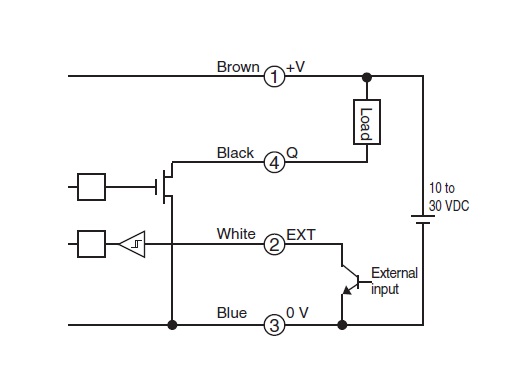

Output circuit diagram

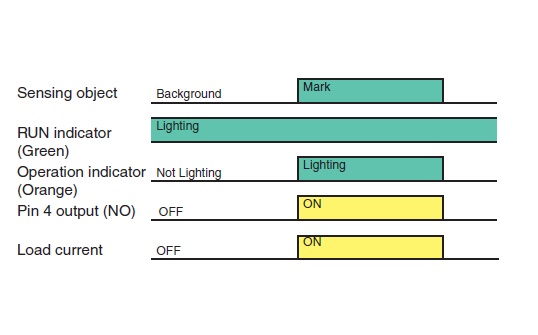

Timing chart
Setting distance

Ratings/Performance

As of March 13, 2024


Shape	Square type
Sensing method	Diffuse-reflective (mark detection)
Sensing distance	White paper 10 x 10 mm: 7 to 13 mm
Spot size	1 x 4 mm
Light source	Red LED (635 nm) Green LED (525 nm) Blue LED (465 nm)
Power supply voltage	10 to 30 VDC ripple (p-p) 10% included
Current consumption	40 mA max.
Power consumption	960 mW max. Power supply voltage 24 V
Control output	NPN 30 VDC max. 100 mA max.
Operation mode	ON when mark is detected
Protective circuit	Output short-cut protection, Output reverse polarity protection, Power supply reverse polarity protection
Response time	2-point teaching mode (Operate or reset): 50 µs max. 1-point teaching mode (Operate or reset): 150 µs max.
Sensitivity setting	Teaching method
Ambient illuminance	Incandescent lamp: 3,000 lx max.
Ambient temperature range (Operating)	-10 to 55 ℃ (with no freezing or condensation)
Ambient temperature range (Storage)	-25 to 70 ℃ (with no freezing or condensation)
Ambient humidity range (Operating)	35 to 85 % (with no condensation)
Ambient humidity range (Strage)	35 to 95 % (with no condensation)
Insulation resistance	20 MΩ min. (500 VDC megger)
Dielectric strength	1000 VAC 50/60 Hz 1 min
Vibration resistance	Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection	IEC: IP67
Connection method	M12 connector models
Indicator	Operation indicator (orange), RUN indicator (green), 7-segment indicator (white), Key lock indicator (white), Timer indicator (white), 1-point teaching mode indicator (white)
Weight	Package: Approx. 370 g Main Unit: Approx. 320 g
Accessories	Instruction manual
Material	Case: Diecast zinc (nickel-plated brass) Lens: Methacrylate resin (PMMA) Display: ABS Buttons: Elastomers Part of Connector: Diecast zinc (nickel-plated brass)
