E3Z-G81 2M

Grooved-type Photoelectric Sensor with Built-in Amplifier


Sensing distance: 25mm, Light-ON/Dark-ON selectable, PNP output, Pre-wired models (2 m), 1 beam

Sensing distance 25 mm max.
Light source Infrared LED (940 nm)
Connection method Pre-wired models (Cable length: 2 m

Item list of E3Z-G

ShapeGrooved Type
Sensing distance25 mm max.
Standard sensing objectOpaque: 1.5 mm dia. min.
Light sourceInfrared LED (940 nm)
Power supply voltage12 to 24 VDC ±10% ripple (p-p) 10% max.
Current consumption25 mA max.
Control outputPNP open collector
26.4 VDC max.
Load current: 100 mA max.
Residual voltage: 1 V max.
Operation modeLight-ON/Dark-ON selectable
Protective circuitOutput short-circuit protection, Power supply reverse polarity protection, Mutual interference prevention
Response time1 ms max.(Operate or reset)
Ambient illuminanceIncandescent lamp: 3000 lux max., Sunlight: 10000 lux max.
Ambient temperatureOperating: -25 to 55℃
Storage: -40 to 70℃
Ambient humidityOperating: 35 to 85%
Storage: 35 to 95%
Insulation resistance20 MΩ min. (at 500 VDC)
Dielectric strength1000 VAC 50/60 Hz 1 min
Vibration resistanceDestruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s**2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP64
Connection methodPre-wired models (Cable length: 2 m
WeightPackage: Approx. 65 g
AccessoriesInstruction manual
MaterialCase: ABS

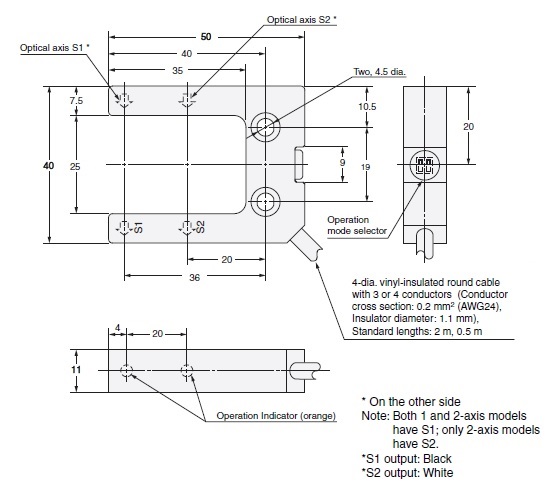

  • Dimensions

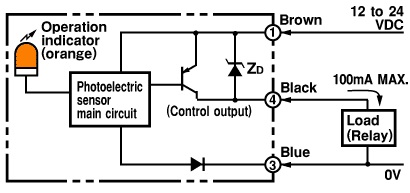

  • Output circuit diagram

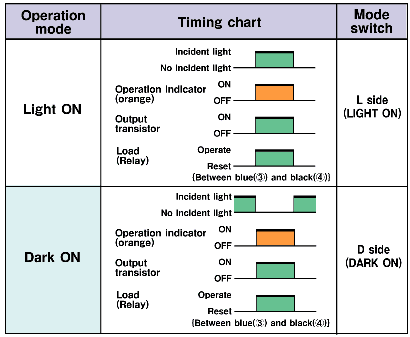

Timing chart
