G3PE-515BL DC12-24

Solid State Relays for Heaters


Solid State Relays for Heaters, Rated load voltage 200 to 480 VAC, 15 A, Screw terminal, Zero cross function None

Product classification For single-phase heater
Zero cross function None
Operating indicator Equipped (Yellow)
Rated voltage 12 to 24 VDC
Rated load voltage 200 to 480 VAC (50/60 Hz)
Load current 0.1 to 15 A (at 40 ℃)
Terminal structure Screw terminal

Item list of G3PE (Single-phase)

  • Ratings / Performance
Ratings
Product classificationFor single-phase heater
Number of phasesSingle-phase
Isolation methodPhototriac
Zero cross functionNone
Operating indicatorEquipped (Yellow)
Terminal structureScrew terminal
MountingDIN track mounting, Screw mounting
InputRated voltage12 to 24 VDC
Operating voltage range9.6 to 30 VDC
Input current15 mA max.
Operate voltage9.6 V max.DC
Release voltage1 V min.DC
OutputRated load voltage200 to 480 VAC (50/60 Hz)
Load voltage range180 to 528 VAC 50/60 Hz
Load current0.1 to 15 A (at 40 ℃)
Inrush current resistivity150 A (60 Hz 1 cycle)
Permissible I2**t128 A2s
Applicable loadLoad carrying capacityResistive load: 6 kW (at 400 VAC)
Performance
Operate time1 ms max.
Release time1/2 cycle of load power source + 1 ms max.
Output ON voltage drop1.8 V max. (RMS)
Leakage current20 mA max. (at 480 VAC)
Insulation resistance100 MΩ min. (at 500 VDC)
Dielectric strength2500 VAC 50/60 Hz 1 min
Vibration resistance10 to 55 to 10 Hz, 0.375 mm single amplitude (0.75 mm double amplitude) (mounted on DIN track)
Shock resistance294 m/s2 (DIN Track mounting)
Ambient temperature (Operating)-30 to 80 ℃ (with no freezing or condensation)
Ambient temperature (Storage)-30 to 100 ℃ (with no freezing or condensation)
Ambient humidity (Operating)45 to 85 %
WeightApprox. 240 g
  • Outline drawing

Mounting holes

  • Connection diagra

Terminal arrangement and internal connection

  • Characteristic chart

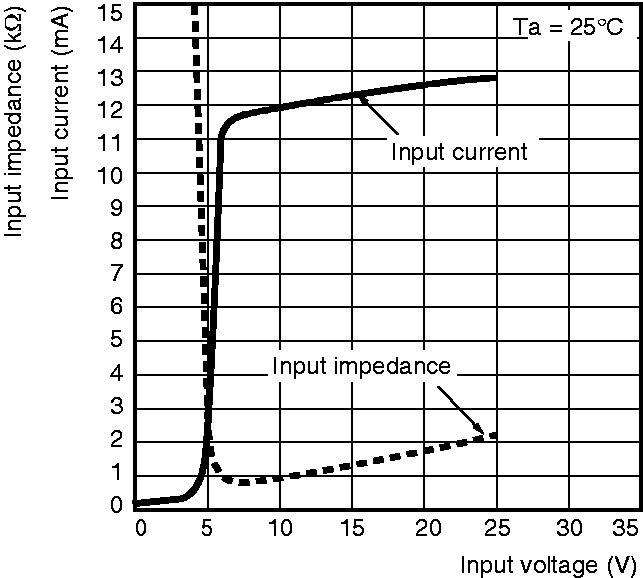

Input Voltage vs. Input Impedance and Input Voltage vs. Input Current

Load current-ambient temperature

Inrush current resistivity (Non-repetitive)

Series

Solid State Relays for Heaters

G3PE (Single-phase)
