E2CY-C2A 3M

Non-ferrous-metal-detecting Proximity Sensor (Separate Amplifier Type)


Proximity Sensor with Separate Amplifier Unit for Detection of Non-ferrous Metals, Sensor Unit, 8 dia. Cylinder type, Sensing distance 2 mm, Materials of sensing surface Heat-resistant ABS resin, Cable length 3 m

Sensing head size 8 dia.
Type Cylinder type Sensor Head, Shielded
Sensing distance 2 mm

Item list of E2CY-SD

  • Ratings/Performance
Sensing head size8 dia.
TypeCylinder type Sensor Head, Shielded
Sensing distance2 mm
Differential distanceAmplifier Unit in FINE mode: 10% max. of sensing distance
Amplifier Unit in NORM mode: 15% max. of sensing distance
Sensing objectNon-ferrous metal
Standard sensing objectAluminum 8 x 8 x 1 mm
Response frequencyAmplifier Unit in FINE mode: 40 Hz
Amplifier Unit in NORM mode: 100 Hz
Ambient temperature (Operating)-10 to 55 ℃
Ambient temperature (Storage)-25 to 70 ℃
Ambient humidity (Operating)35 to 95 %
Ambient humidity (Storage)35 to 95 %
Temperature influence±10% max. of sensing distance at 23 ℃ in the temperature range of −10 to 55 ℃
±10% max. of sensing distance at 23 ℃ in the temperature range of 0 to 40 ℃
Vibration resistanceDestruction: 10 to 500 Hz, 2 mm double amplitude or 150 m/s2 each in X, Y, and Z directions for 2 h
Shock resistanceDestruction: 500 m/s2 3 times each in X, Y and Z directions
Degree of protectionIEC: IP67
Connection methodPre-wired models (3 m)
WeightPackage: Approx. 35 g
MaterialCase: Stainless steel
Sensing surface: Heat-resistant ABS resin
Cable: PVC
Amplifier unit/sensor head of combinationE2CY-SD11
  • Dimensions

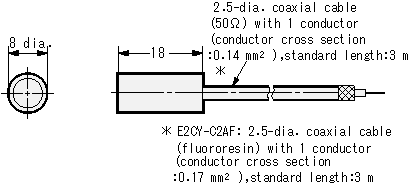

Dimensions

  • Mutual interference

Mutual interference

A: 20 mm min., B: 15 mm min.

  • Effects of surrounding metals

Effects of surrounding metals

l: 0 mm min., dia. d: 8 mm min., D: 0 mm min., m: 15 mm min.

  • Characteristic chart

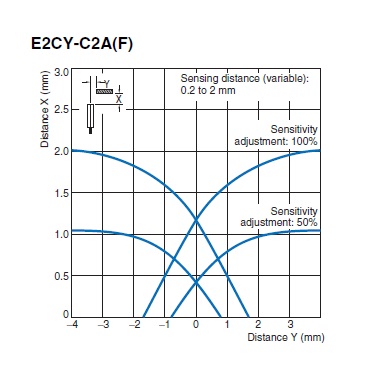

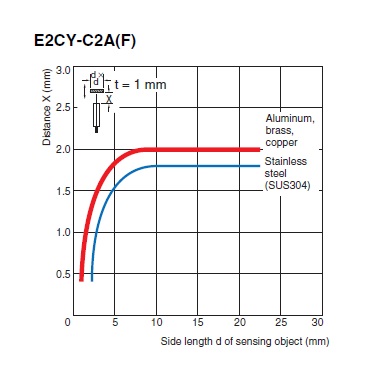

Sensing distance vs. size and material of sensing object

Sensing range

Series

Non-ferrous-metal-detecting Proximity Sensor (Separate Amplifier Type)

E2CY-SD
