GT1-ID / OD

Digital I/O Units

GT1-ID / OD

Digital I/O Units Compatible with MULTIPLE I/O TERMINAL

Caution: All units are in millimeters unless otherwise indicated.

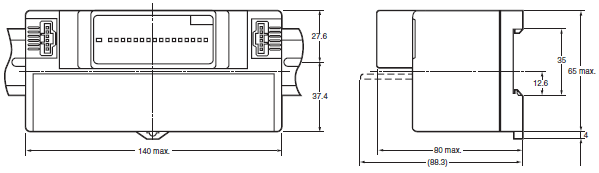

Terminal Block Model
GT1-ID16
GT1-ID16-1
GT1-OD16
GT1-OD16-1

GT1-ID / OD Dimensions 1

Note: Accessory cable included.

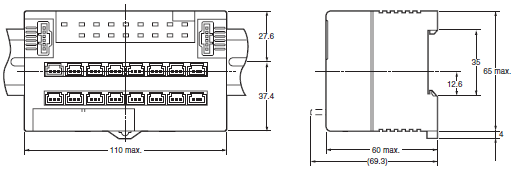

Connector Model
GT1-ID16MX
GT1-ID16MX-1
GT1-OD16MX
GT1-OD16MX-1

GT1-ID / OD Dimensions 2

Note: Accessory cable included.

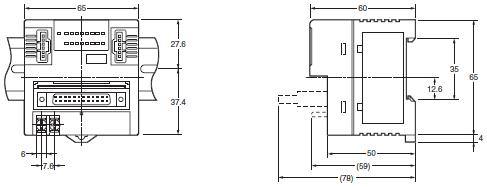

Connector Model
GT1-ID16ML
GT1-ID16ML-1
GT1-OD16ML
GT1-OD16ML-1

GT1-ID / OD Dimensions 3

Note: Accessory cable included.

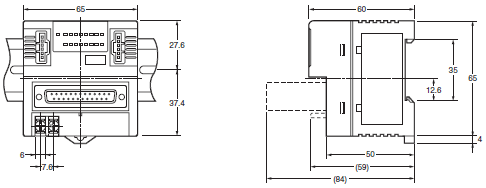

Connector Model
GT1-ID16DS
GT1-ID16DS-1
GT1-OD16DS
GT1-OD16DS-1

GT1-ID / OD Dimensions 4

Note: Accessory cable included.

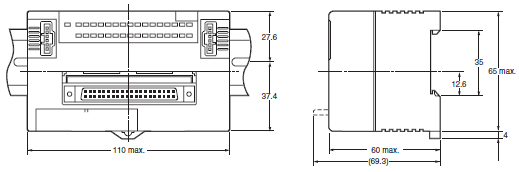

High-density Connector Model
GT1-ID32ML
GT1-ID32ML-1
GT1-OD32ML
GT1-OD32ML-1

GT1-ID / OD Dimensions 5

Note: Accessory cable included.
