GlobalSelect an Operation Unit Set (Operation Unit and Case) and a Socket Unit Set (Lamp and Socket Unit).
M16
Indicator (Cylindrical 16-dia.)
Cylindrical 16-dia. Indicator
about this Product Family
Related Contents
- Push Buttons / Indicator Lamps
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: November 15, 2012
Sets
Ordering as a Set
The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Case, Lamp, and Socket.
M16[]-J (Rectangular) Models
Solder Terminal Models
| Appearance | Degree of protection | IP40 | IP65 oil-resistant | Display color
symbol * |
|
|---|---|---|---|---|---|
Rectangular (M16-J)
 |
LED without Voltage
Reduction Unit |
5 VDC | M16-J[] -5D | M165-J[] -5D | R: red
Y: yellow G: green A: blue W: white PY: pure yellow PW: pure white |
| 12 VAC/VDC | M16-J[] -12D | M165-J[] -12D | |||
| 24 VAC/VDC | M16-J[] -24D | M165-J[] -24D | |||
| Incandescent
lamp |
5 VAC/VDC | M16-J[] -5 | M165-J[] -5 | R: red
Y: yellow G: green A: blue W: white PY: pure yellow |
|
| 12 VAC/VDC | M16-J[] -12 | M165-J[] -12 | |||
| 24 VAC/VDC | M16-J[] -24 | M165-J[] -24 | |||
M16[]-A (Square) Models
Solder Terminal Models
| Appearance | Degree of protection | IP40 | IP65 oil-resistant | Display color
symbol * |
|
|---|---|---|---|---|---|
Square (M16-A)
 |
LED without Voltage
Reduction Unit |
5 VDC | M16-A[] -5D | M165-A[] -5D | R: red
Y: yellow G: green A: blue W: white PY: pure yellow PW: pure white |
| 12 VAC/VDC | M16-A[] -12D | M165-A[] -12D | |||
| 24 VAC/VDC | M16-A[] -24D | M165-A[] -24D | |||
| Incandescent
lamp |
5 VAC/VDC | M16-A[] -5 | M165-A[] -5 | R: red
Y: yellow G: green A: blue W: white PY: pure yellow |
|
| 12 VAC/VDC | M16-A[] -12 | M165-A[] -12 | |||
| 24 VAC/VDC | M16-A[] -24 | M165-A[] -24 | |||
M16[]-T (Round) Models
Solder Terminal Models
| Appearance | Lighting | Degree of
protection |
IP40 | IP65 oil-resistant | Display color
symbol * 1 |
|---|---|---|---|---|---|
Round (M16-T)
 |
LED without Voltage
Reduction Unit |
5 VDC | M16-T[]-5D | M165-T[]-5D | R: red
Y: yellow G: green A: blue W: white PY: pure yellow PW: pure white |
| 12 VAC/VDC | M16-T[]-12D | M165-T[]-12D | |||
| 24 VAC/VDC | M16-T[]-24D | M165-T[]-24D | |||
| Incandescent
lamp |
5 VAC/VDC | M16-T[]-5 | M165-T[]-5 | R: red
Y: yellow G: green A: blue W: white PY: pure yellow |
|
| 12 VAC/VDC | M16-T[]-12 | M165-T[]-12 | |||
| 24 VAC/VDC | M16-T[]-24 | M165-T[]-24 |
Note: Neon lamps are not available with models that are ordered as a set. They must be ordered individually if required.
* Enter the desired color symbol into the box in the model number.
* Enter the desired color symbol into the box in the model number.

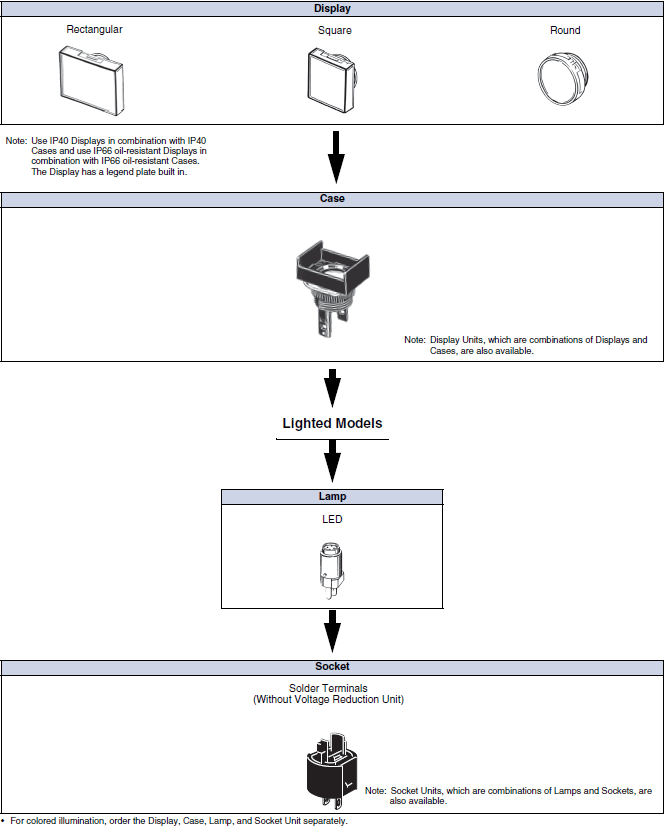

Ordering Individually
Displays, Cases, Lamps, and Sockets can be ordered separately. Combinations that are not available as sets can be created using individual parts. Also, store the parts as spares for maintenance and repairs.
• For colored illumination, order the Display, Case, Lamp, and Socket Unit separately.
Sets
Sets that combined a Display and Cases are also available.
Display Set
| Appearance | Classification | Model | |
|---|---|---|---|
|
IP40 | Rectangular (2-way guard) | A16-J[]M |
| Square (2-way guard) | A16-A[]M | ||
| Round (projecting model) | A16-T[]M | ||
| Oil-resistant IP65 | Rectangular (2-way guard) | A165-J[]M | |
| Square (2-way guard) | A165-A[]M | ||
| Round (projecting model) | A165-T[]M | ||
Insert one of the following symbols into the box in the model number.
| Symbol | Color | Remarks |
|---|---|---|
| R | Red | LED and incandescent lamps |
| Y | Yellow | |
| PY | Pure yellow | |
| A | Blue | |
| W | White * | |
| GY | Green | LED only |
| G | Green | Incandescent only |
* Use this pushbutton color if the illumination color of the LED is white or pure white.
Socket Unit Sets with Incandescent Lamps
| Appearance | Classification | Model | |
|---|---|---|---|
|
5 V | Solder terminals | M16-5 |
| 12 V | M16-12 | ||
| 24 V | M16-24 | ||
Socket Unit Sets with LEDs
| Appearance | Classification | Model |
|---|---|---|
|
Solder terminals |
|
Socket Unit Sets with Voltage-reduction Lighting (Solder Terminals)
| Appearance | Classification | Model |
|---|---|---|
 |
100/110 VAC/VDC |
 |

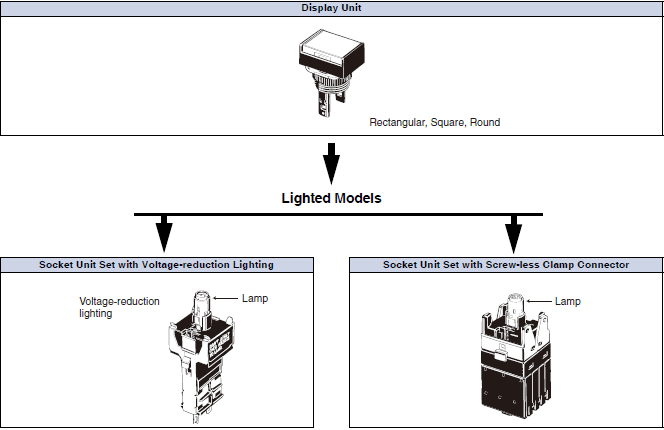

Socket Unit Sets with Screw-less Clamp Connectors
| Appearance | Classification | Model | ||
|---|---|---|---|---|
 |
Display | No voltage-reduction lighting |
 |
|
| Voltage-reduction lighting (See note.) | 100/110 VAC/VDC |
 |
||
| 200/220 VAC/VDC |
 |
|||
Note: 1. The LED built into the 100-V model is 24 VAC/VDC.
2. The LED built into the 200-V model is high-intensity 24 VAC/VDC.
2. The LED built into the 200-V model is high-intensity 24 VAC/VDC.

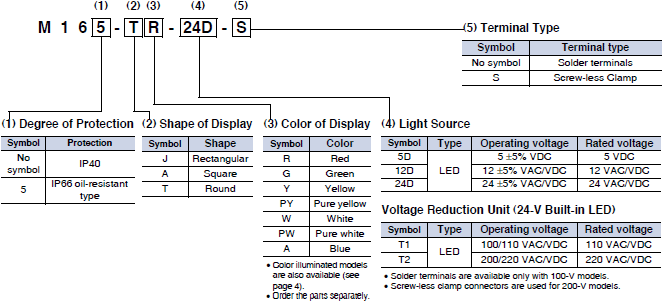

Insert symbols into the boxes with circled numbers.
| Symbol | Color |
|---|---|
| R | Red |
| Y | Yellow |
| A | Blue |
| W | White |
| G | Green |
| Symbol | Type | Operating voltage |
|---|---|---|
| 5D | LED | 5 VDC |
| 12D | 12 VAC/VDC | |
| 24D | 24 VAC/VDC |
Display
For LED-lighted Models
| Sealing | IP40 | IP65 oil-resistant | ||||
|---|---|---|---|---|---|---|
|
Appearance Color of Display |
Rectangular  |
Square  |
Round  |
Rectangular |
Square |
Round |
| Red | A16L-JR | A16L-AR | A16L-TR | A165L-JR | A165L-AR | A165L-TR |
| Yellow | A16L-JY | A16L-AY | A16L-TY | A165L-JY | A165L-AY | A165L-TY |
| Pure yellow | A16L-JPY | A16L-APY | A16L-TPY | A165L-JPY | A165L-APY | A165L-TPY |
| Green | A16L-JGY | A16L-AGY | A16L-TGY | A165L-JGY | A165L-AGY | A165L-TGY |
| White | A16L-JW | A16L-AW | A16L-TW | A165L-JW | A165L-AW | A165L-TW |
| Blue | A16L-JA | A16L-AA | A16L-TA | A165L-JA | A165L-AA | A165L-TA |
Incandescent Lamps (With the exception of green, the Units are the same as for LEDs.)
| Sealing | IP40 | IP65 oil-resistant | ||||
|---|---|---|---|---|---|---|
|
Appearance Color of Display |
Rectangular  |
Square  |
Round  |
Rectangular |
Square |
Round |
| Red | A16L-JR | A16L-AR | A16L-TR | A165L-JR | A165L-AR | A165L-TR |
| Yellow | A16L-JY | A16L-AY | A16L-TY | A165L-JY | A165L-AY | A165L-TY |
| Pure yellow | A16L-JPY | A16L-APY | A16L-TPY | A165L-JPY | A165L-APY | A165L-TPY |
| Green | A16L-JG | A16L-AG | A16L-TG | A165L-JG | A165L-AG | A165L-TG |
| White | A16L-JW | A16L-AW | A16L-TW | A165L-JW | A165L-AW | A165L-TW |
| Blue | A16L-JA | A16L-AA | A16L-TA | A165L-JA | A165L-AA | A165L-TA |
Lamp
LED
| Operating voltage | High intensity | ||
|---|---|---|---|
Color
 |
5 VDC | 12 VAC/VDC | 24 VAC/VDC |
| Red | A16-5DSR | A16-12DSR | A16-24DSR |
| Yellow | A16-5DSY | A16-12DSY | A16-24DSY |
| Green | A16-5DSG | A16-12DSG | A16-24DSG |
| White * | A16-5DSW | A16-12DSW | A16-24DSW |
| Blue | A16-5DA | A16-12DA | A16-24DA |
Incandescent Lamp
| Appearance | Operating voltage | Model |
|---|---|---|
|
5 VAC/VDC | A16-5 |
| 12 VAC/VDC | A16-12 | |
| 24 VAC/VDC | A16-24 |
Case
| Appearance | Classification | Model number | |
|---|---|---|---|
|
IP40 | Rectangular | A16-CJM |
| Square | A16-CAM | ||
| Round | A16-CTM | ||
| IP65 oil-resistant | Rectangular | A165-CJM | |
| Square | A165-CAM | ||
| Round | A165-CTM | ||
Socket
| Appearance | Classification | Model number | ||
|---|---|---|---|---|
|
Solder terminals |
Solder terminals | M16-0 | ||
| PCB terminals | M16-0P | |||
| Screw-Less Clamp | M16-S | |||
| Solder terminals | Voltage-reduction lighting | 100 V | M16-T1 | |
| Screw-less Clamp | 100 V | M16-T1-S | ||
| 200 V | M16-T2-S | |||
