M22
Indicator (Cylindrical 22/25-dia.)
Round Indicator Series with 22 dia. and 25 dia. (when using a ring)
Related Contents
- Push Buttons / Indicator Lamps
- Features
- Lineup
- Specifications
- Dimensions
- Catalog
last update: April 1, 2024
Model Number Structure

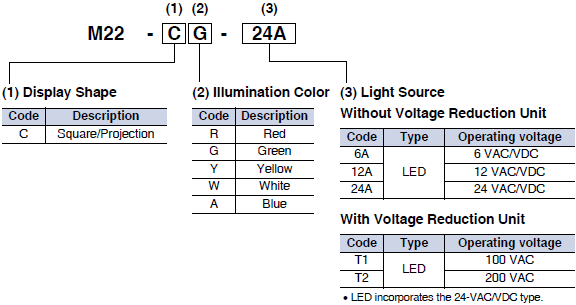

Model Number Legend
Ordering Information
Completely Assembled
Shipped as a set which includes the Display, Lamp, and Socket Unit.
Not all combinations are possible.
Indicator
| Appearance | Lighting | Operating voltage | Set | Illumination color | |
|---|---|---|---|---|---|
| Square/Projection
without Voltage Reduction Unit M22-C |
 |
LED | 6 VAC/VDC | M22-CY-6A | R (red)
Y (yellow) G (green) W (white) A (blue) |
| 12 VAC/VDC | M22-C[]-12A | ||||
| 24 VAC/VDC | M22-C[]-24A | ||||
| Square/Projection
with Voltage Reduction Unit M22-C |
 |
LED | 100 VAC | M22-C[]-T1 | |
| 200 VAC | M22-C[]-T2 | ||||
Note: Insert a symbol indicating the color of the Operation Unit in the box in the model number above.
Subassembled

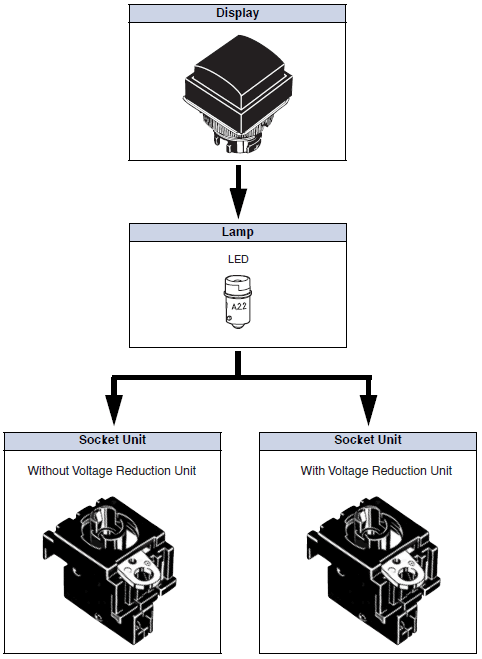

The Display, Lamp, or Socket Unit can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.
Ordering: Specify models on the following page.
Display
| Sealing | IP65 | |
|---|---|---|
| Appearance | Color of Display | Model |
Square (Projection)
 |
Red | M22-CR |
| Green | M22-CG | |
| Yellow | M22-CY | |
| White | M22-CW | |
| Blue | M22-CA | |
Lamp
LED
| Operating voltage | 6 VAC/VDC | 12 VAC/VDC | 24 VAC/VDC | ||
|---|---|---|---|---|---|
| Appearance | AC/DC | LED light | Model | ||
 |
AC and DC | Red | A22-6AR | A22-12AR | A22-24AR |
| Green | A22-6AG | A22-12AG | A22-24AG | ||
| Yellow * | A22-6AY | A22-12AY | A22-24AY | ||
| Blue | A22-6AA | A22-12AA | A22-24AA | ||
Note: For voltage-reduction lighting, use the A22-24A[]. Only 24-V LED lamps can be used.
* Used when the Display color is yellow or white.
Socket Unit
| Appearance |
 |
 |
 |
|---|---|---|---|
| Classification | Without Voltage Reduction Unit | With Voltage Reduction Unit (110 VAC) | With Voltage Reduction Unit (220 VAC) |
| Model | M22-00 | M22-00-T1 | M22-00-T2 |
Note: For voltage-reduction LED lamps, use the A22-24A[]. Only 24-V LED lamps can be used.
Accessories, Replacements, and Tools
The M22 uses the same accessories as the A22. Refer to the relevant information in the corresponding section for the A22.
