E3S-LS3[]

PCB Sensors

E3S-LS3[]

Reliable Detection Unaffected by PCB Holes or Notches

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

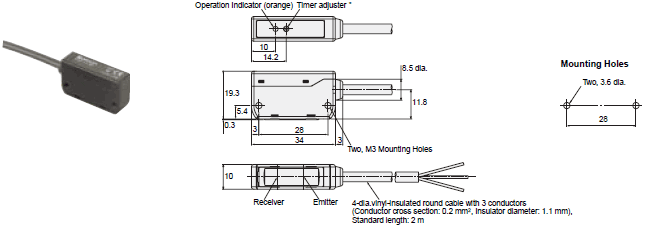

E3S-LS3N(T)/E3S-LS3P(T)
E3S-LS3NW(T)/E3S-LS3PW(T)

E3S-LS3[] Dimensions 2

* The timer adjuster is only for models with the timer function.
