E3Z-G

Grooved-type Photoelectric Sensor with Built-in Amplifier

E3Z-G

Photoelectric Sensor with Grooved Design and Easy Settings

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

E3Z-G61
E3Z-G62

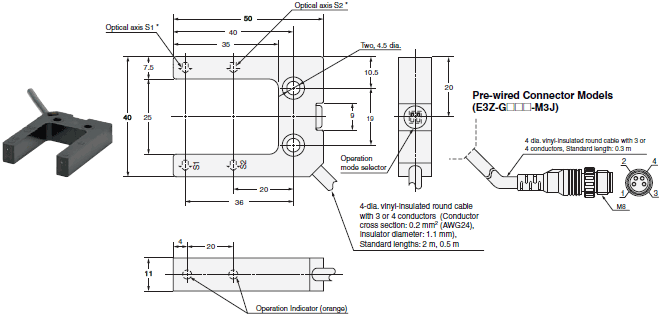

E3Z-G Dimensions 3

* On the other side
Note: Both 1 and 2-axis models have S1; only 2-axis models have S2.
*S1 output: Black
*S2 output: White
