G7S-[]-E

Relays with Forcibly Guided Contacts

G7S-[]-E

Relays with Forcibly Guided Contacts and High Switching Capacity of 10A

Caution: All units are in millimeters unless otherwise indicated.

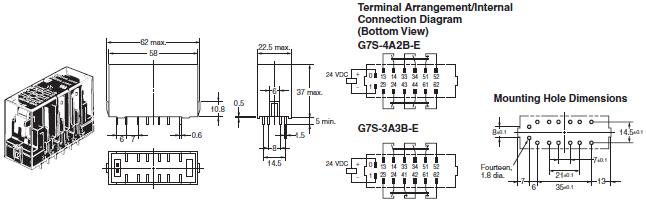

Relays with Forcibly Guided Contacts

G7S-4A2B-E
G7S-3A3B-E

G7S-[]-E Dimensions 2

Sockets

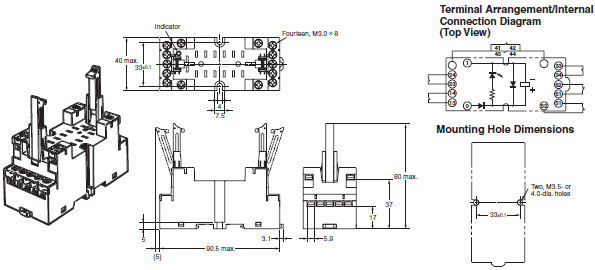

Track-mounting Socket
P7S-14F-END

G7S-[]-E Dimensions 4

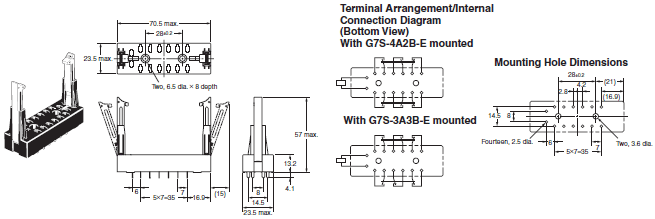

Back-mounting Socket (PCB Terminals)
P7S-14P-E

G7S-[]-E Dimensions 5
