V640 Series

RFID System (Conforms to SEMI standard, Electromagnetic Inductive 134 kHz)

V640 Series

Line-up Ethernet I/F model newly. RFID system for Semiconductor applications, supports reading and writing TI (Texas Instruments) transponders

Caution: All units are in millimeters unless otherwise indicated.

CIDRW Head

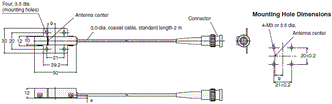

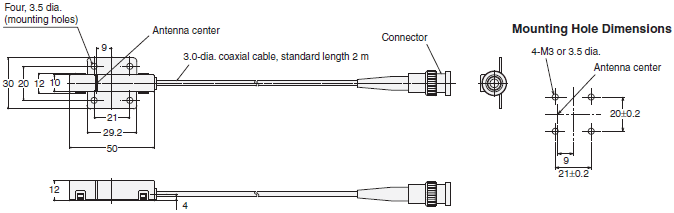

V640-HS61

V640 Series Dimensions 2

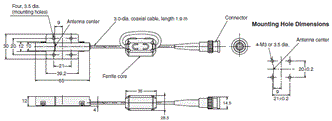

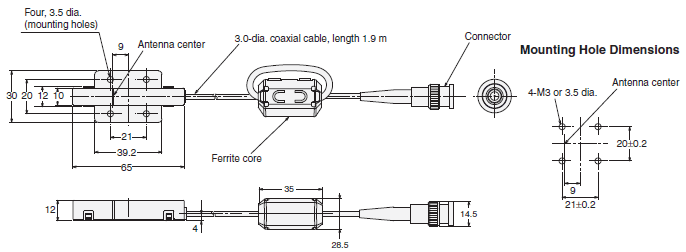

V640-HS62

V640 Series Dimensions 3

Amplifier Unit

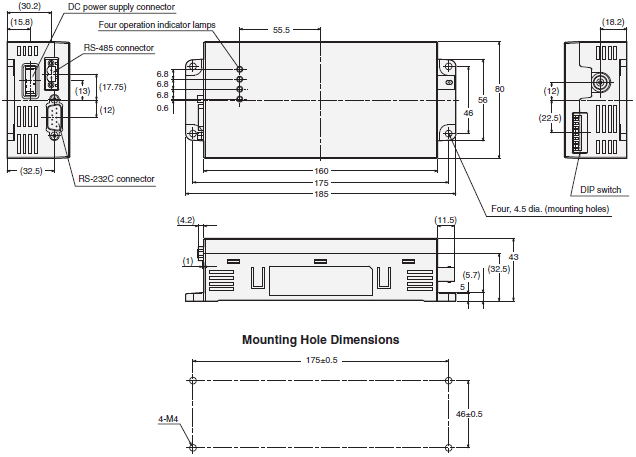

V640-HAM11-V3
V640-HAM11-V4
V640-HAM11-L
V680-HAM11-L-V2

V640 Series Dimensions 5

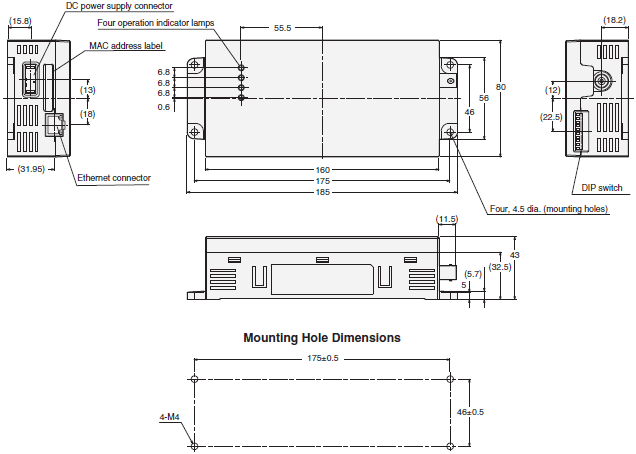

V640-HAM11-ETN
V640-HAM11-ETN-V2
V640-HAM11-L-ETN
V640-HAM11-L-ETN-V2

V640 Series Dimensions 6

CIDRW Controller

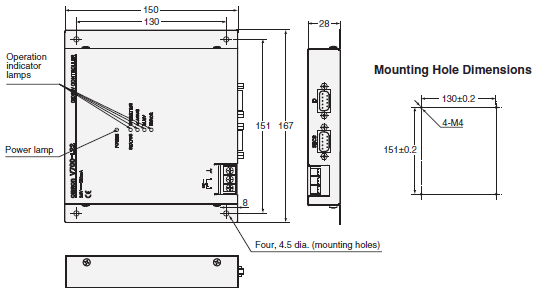

V700-L22

V640 Series Dimensions 8

V700-L22-V2

V640 Series Dimensions 9

ID Link Unit

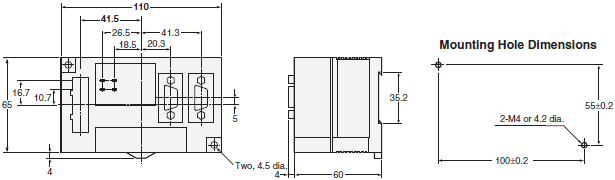

V700-L11

V640 Series Dimensions 11
