ZJ-SD

Smart Electrostatic Sensor

ZJ-SD

Smart Static Electricity Sensing: Making Static Electricity Visible

Caution: All units are in millimeters unless otherwise indicated.

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

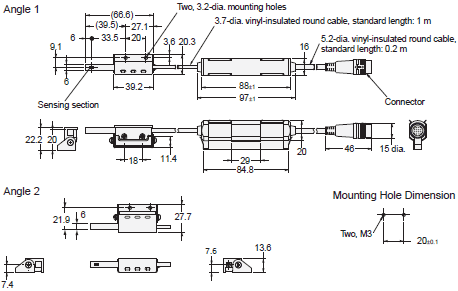

Electrostatic Sensor

Sensor Head

ZJ-SD100

ZJ-SD Dimensions 3

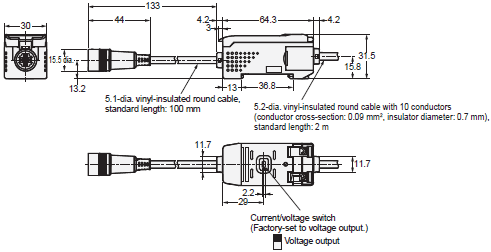

Amplifier

ZJ-SDA11

ZJ-SD Dimensions 4

Accessories (Order Separately)

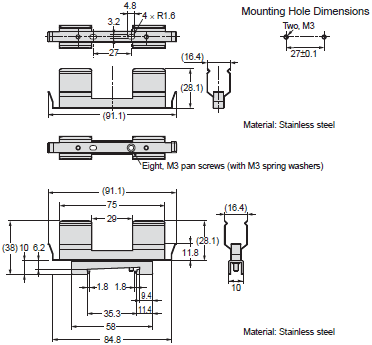

Preamplifier Mounting Brackets

ZX-XBT1

ZJ-SD Dimensions 6

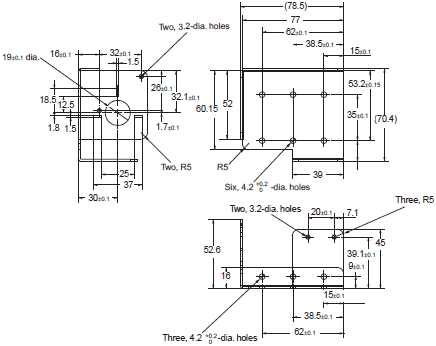

Sensor Head Mounting Bracket for Distance Compensation

ZJ-XBU1

ZJ-SD Dimensions 7

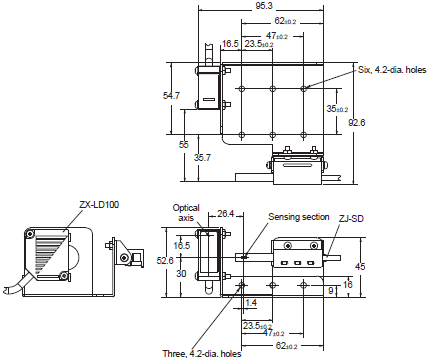

Dimensions with ZX-LD100 Sensor Head

ZJ-SD Dimensions 8
