E52-THE5A / 6D / 6F

Temperature Sensor (Thermistors)

E52-THE5A / 6D / 6F

Element interchangeable thermistor (Exposed-lead Models, Exposed-lead Models with Screws ,Exposed-lead Models with Flange)

Caution: All units are in millimeters unless otherwise indicated.

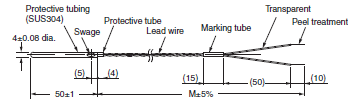

Exposed-lead Models

E52-THE5A

E52-THE5A / 6D / 6F Dimensions 2

Note: The lead wires have no polarity

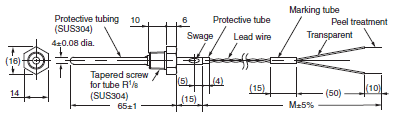

Exposed-lead Models with Screws

E52-THE6D

E52-THE5A / 6D / 6F Dimensions 4

Note: The lead wires have no polarity

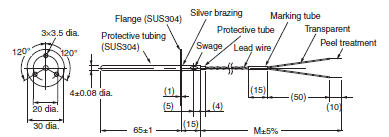

Exposed-lead Models with Flange

E52-THE6F

E52-THE5A / 6D / 6F Dimensions 6

Note: The lead wires have no polarity
