S8M

Digital Multicircuit Protector

S8M

Complete Flexible DC Circuit Protector That Has a Wide Array of Displays, Alarm Outputs, and Other Digital Functions.

Caution: All units are in millimeters unless otherwise indicated.

S8M

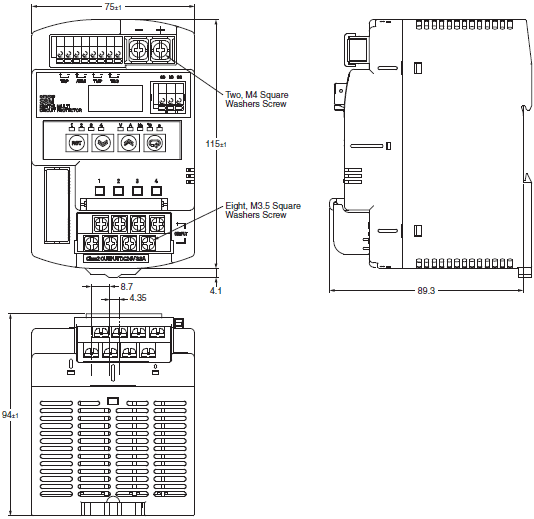

S8M Dimensions 1

Note: The image is the S8M-CP04-RS Model.

DIN Rail (Order Separately)

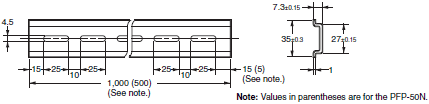

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

S8M Dimensions 4

PFP-100N2

S8M Dimensions 5

End Plate

PFP-M

S8M Dimensions 7
