H3CR-H

Solid-state Timer

H3CR-H

DIN 48 × 48-mm OFF-delay Timer

Caution: All units are in millimeters unless otherwise indicated.

H3CR-H8L
H3CR-H8RL

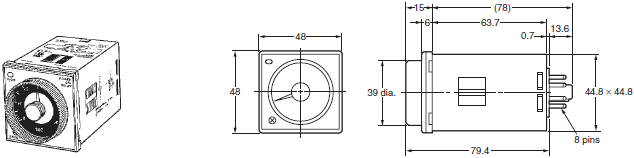

H3CR-H Dimensions 1

H3CR-HRL

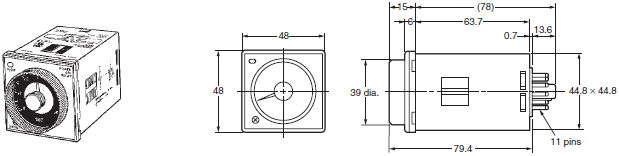

H3CR-H Dimensions 2

Dimensions with Front Connecting Socket

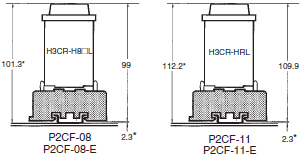

P2CF-08-[]/P2CF-11-[]

H3CR-H Dimensions 3

Note: There are no restrictions to the mounting direction.
* These dimensions vary with the kind of DIN track (reference value).

Dimensions with Back Connecting Socket
P3G-08/P3GA-11

H3CR-H Dimensions 4
