CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1)

Digital I/O Slave Units with Screw Terminal Blocks (3-tier Terminal Block)

CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1)

With the relay terminal blocks, doubling up wires on terminals is not necessary! Smart Slave Units with Easy-to-understand Wiring Locations with One Common for Every Point.

Caution: All units are in millimeters unless otherwise indicated.

CRT1-ID08TA (-1)
CRT1-OD08TA(-1)

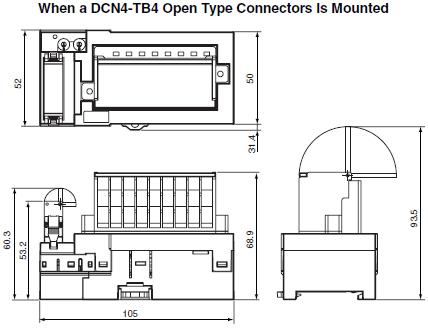

CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Dimensions 1

CRT1-ID16TA(-1)
CRT1-OD16TA(-1)
CRT1-MD16TA(-1)

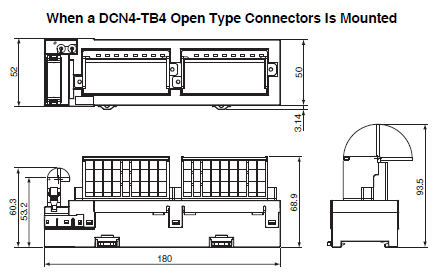

CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Dimensions 2
