G3PF

Solid State Relays with Built-in Current Transformer

G3PF

A New-concept SSR with Built-in Current Transformer. Heater Burnout and SSR Shortcircuit Failure Detection.

Caution: All units are in millimeters unless otherwise indicated.

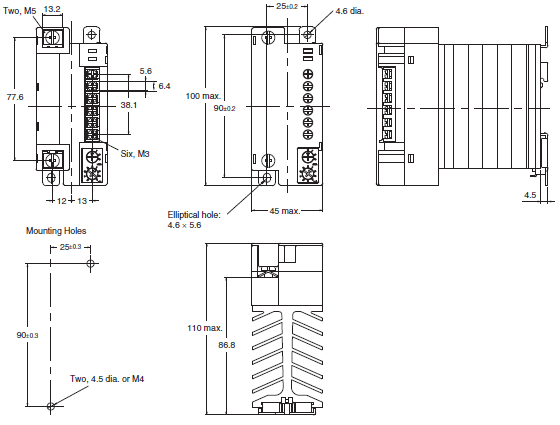

G3PF-[]25B

G3PF Dimensions 2 G3PF-[]25B_Dim

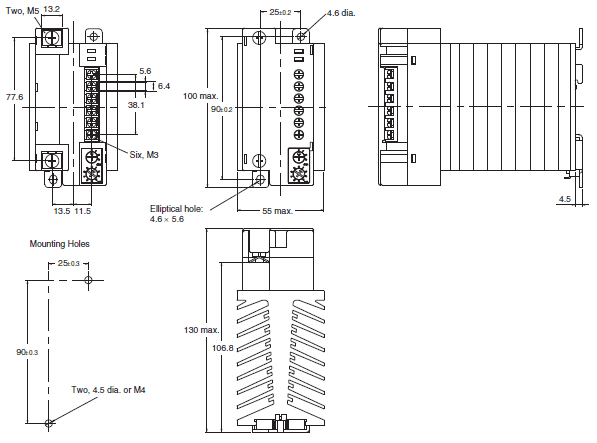

G3PF-[]35B

G3PF Dimensions 4 G3PF-[]35B_Dim

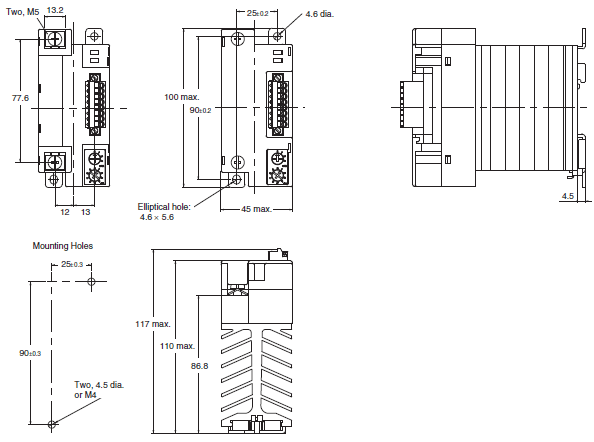

G3PF-[]25B-CTB

G3PF Dimensions 6 G3PF-[]25B-CTB_Dim

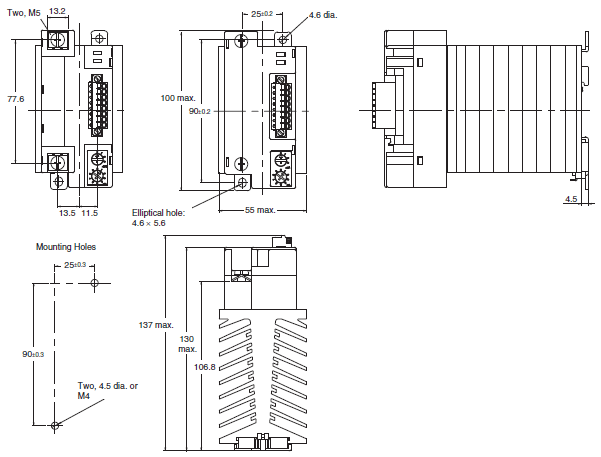

G3PF-[]35B-CTB

G3PF Dimensions 8 G3PF-[]35B-CTB_Dim

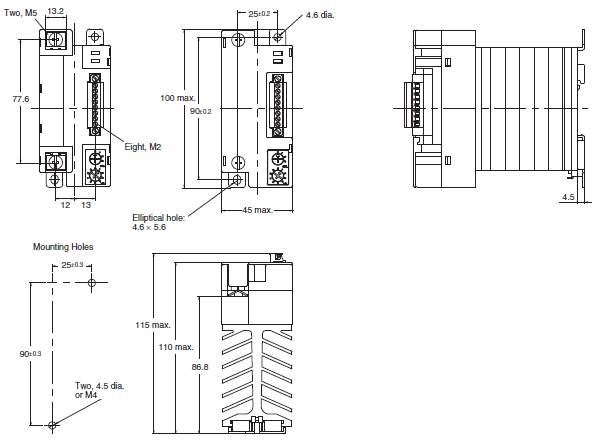

G3PF-[]25B-STB

G3PF Dimensions 10 G3PF-[]25B-STB_Dim

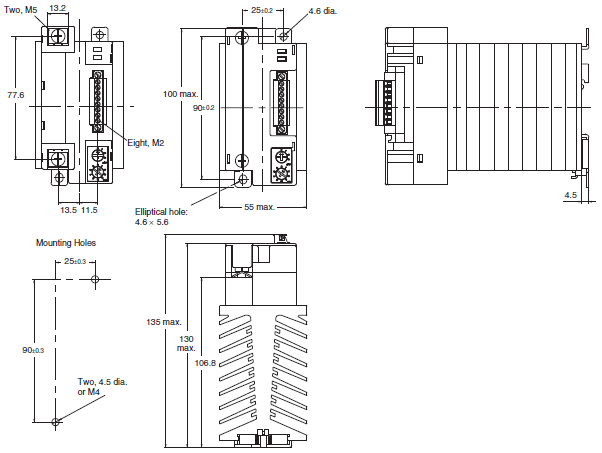

G3PF-[]35B-STB

G3PF Dimensions 12 G3PF-[]35B-STB_Dim
