CRT1-VID08S(-1) / VOD08S(-1)

Digital I/O Slave Units with e-CON Connector (Vertical type)

CRT1-VID08S(-1) / VOD08S(-1)

A vertical slave unit of little wiring and size

Caution: All units are in millimeters unless otherwise indicated.

CRT1-VID08S (-1)
CRT1-VOD08S (-1)

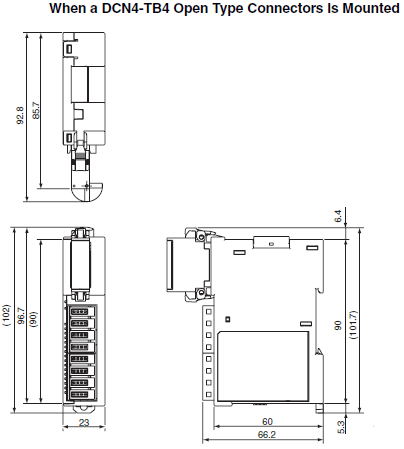

CRT1-VID08S(-1) / VOD08S(-1) Dimensions 1

The numbers inside the parentheses are reference dimensions.

Mounting Bracket
CRT1-ATT02

CRT1-VID08S(-1) / VOD08S(-1) Dimensions 2
