G9SX-SM

Standstill Monitoring Unit

G9SX-SM

Sensor-less Monitoring of Standstill for Machines with Long Inertia

Caution: All units are in millimeters unless otherwise indicated.

Standstill Monitoring Unit
G9SX-SM032-[]

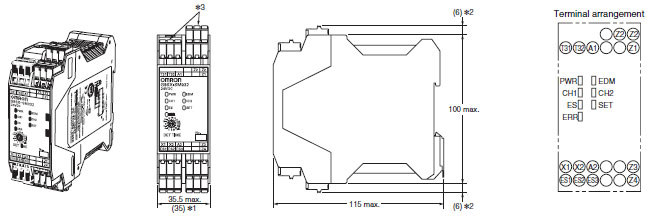

G9SX-SM Dimensions 1

*1. Typical dimension
*2. For -RC terminal type only.
*3. The terminal colors are green for the Unit right side (Standstill detection input) and black for the left side.
Note: Above outline drawing is for -RC terminal type.
