ZG2

Smart Sensor (2D Measurement Sensor)

ZG2

2D Laser Profile Measurement System. ZG2 debut! Achieving stable measurement through innovative technology.

Caution: All units are in millimeters unless otherwise indicated.

Sensor Heads

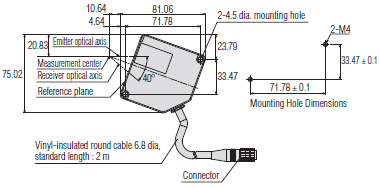

ZG2-WDS3VT

〈Regular reflection〉

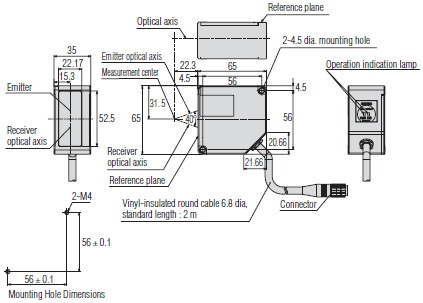

ZG2 Dimensions 3

〈Diffuse reflective〉

ZG2 Dimensions 4

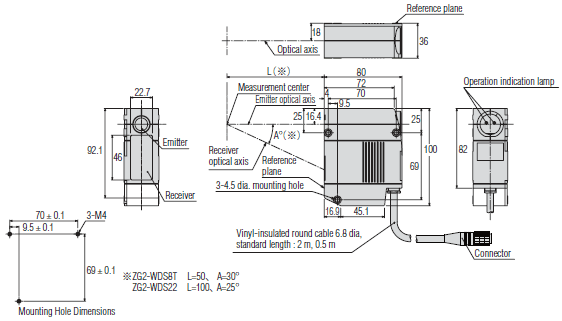

ZG2-WDS8T/WDS22
〈Diffuse reflective〉

ZG2 Dimensions 5

ZG2-WDS8T
〈Regular reflection〉

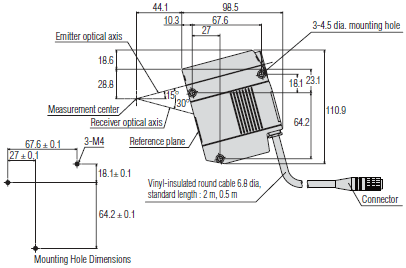

ZG2 Dimensions 6

ZG2-WDS22
〈Regular reflection〉

ZG2 Dimensions 7

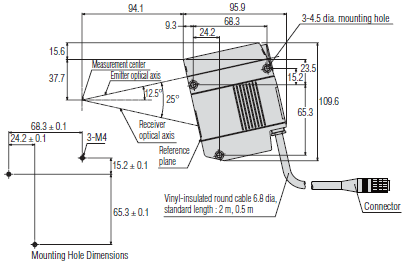

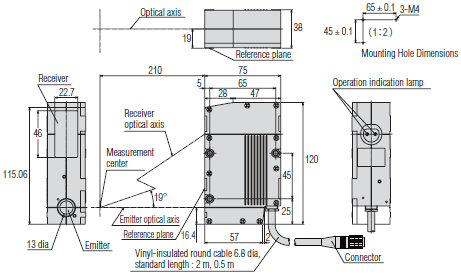

ZG2-WDS70
〈Diffuse reflective〉

ZG2 Dimensions 8

Sensor Controller

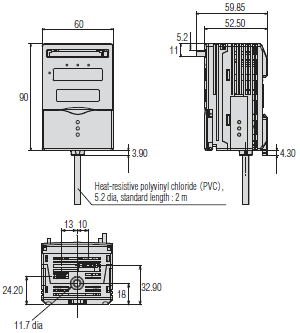

ZG2-WDC11/WDC41

ZG2 Dimensions 10

Data Storage Unit

ZG2-DSU11/DSU41

ZG2 Dimensions 12

Panel Mounting Adaptor

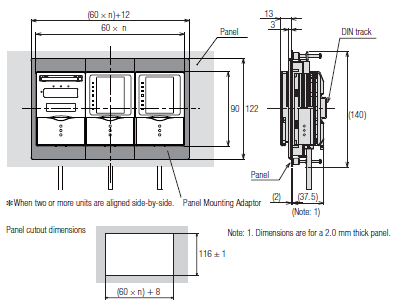

ZS-XPM1/XPM2 (Dimensions for mounting on a control panel)

ZG2 Dimensions 14

Real-time Parallel Output Unit

ZG-RPD11/RPD41

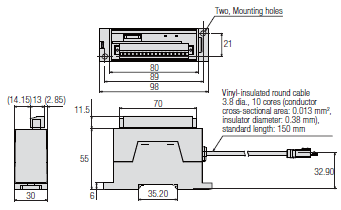

ZG2 Dimensions 16
