CJ1W-MD

CJ-series Mixed I/O Units

CJ1W-MD

A Wide Range of Basic Mixed I/O Units for Different Applications and Wiring Methods. This unit is available for CJ/NJ controller.

Item list of CJ1W-MD

about this Product Family

Related Contents

last update: December 19, 2013

(Unit: mm)

32-point Units (Mixed I/O Units)

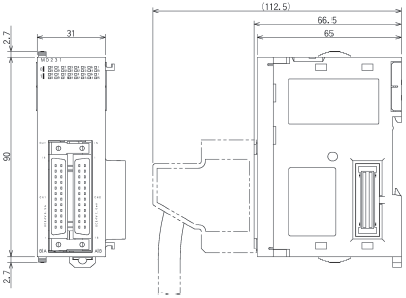

With Fujitsu-compatible connector (24-pin × 2)
CJ1W-MD231

CJ1W-MD Dimensions 2

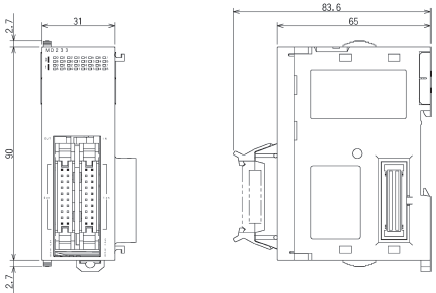

With MIL connector (20-pin × 2)
CJ1W-MD232
CJ1W-MD233

CJ1W-MD Dimensions 3

64-point Units (Mixed I/O Units)

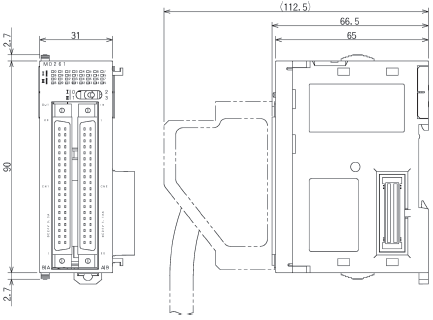

With Fujitsu-compatible connector (40-pin × 2)
CJ1W-MD261

CJ1W-MD Dimensions 5

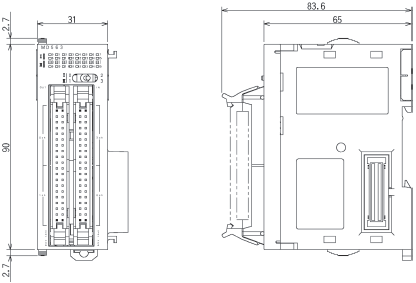

With MIL connector (40-pin × 2)
CJ1W-MD263
CJ1W-MD563

CJ1W-MD Dimensions 6
