A22TK

Safety Key Selector Switch

A22TK

Key-type Selector Switch with Direct Opening Mechanism

Caution: All units are in millimeters unless otherwise indicated.

Switch

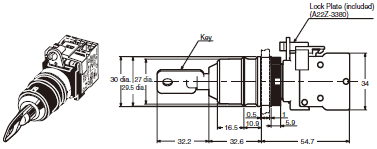

A22TK-2LL

A22TK Dimensions 2 A22TK-2LL_Dim

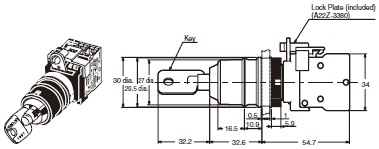

A22TK-2RL

A22TK Dimensions 3 A22TK-2RL_Dim

Accessories

Control Box

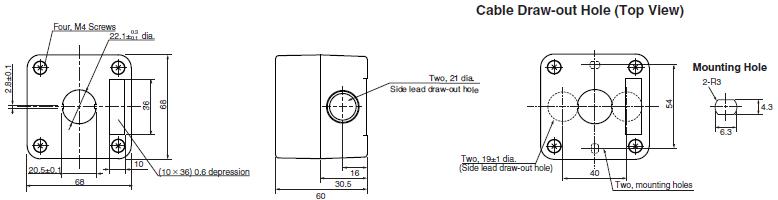

A22Z-B101Y (1 hole)

A22TK Dimensions 5

Control Box

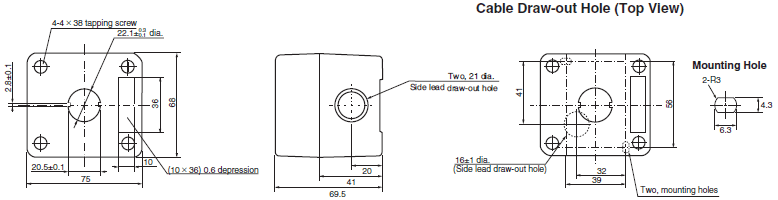

A22Z-B201Y (1 hole)

A22TK Dimensions 6

Terminal Arrangement (Bottom View)

A22TK Dimensions 7 Terminal Arrangement (Bottom View)_Dim

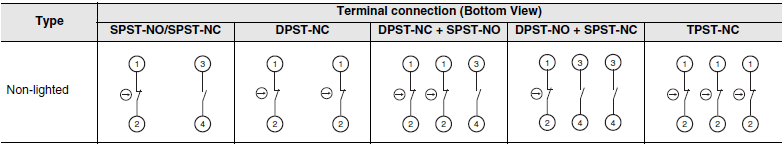

Terminal Connection

A22TK Dimensions 8 Terminal Connection_Dim
