61F-AN / -APN2

Alternate Operation Relay

61F-AN / -APN2

Increases Motor Life and Enables Operating Only One Pump When Cleaning Tanks or as an Emergency Measure for Pump Failures.

Caution: All units are in millimeters unless otherwise indicated.

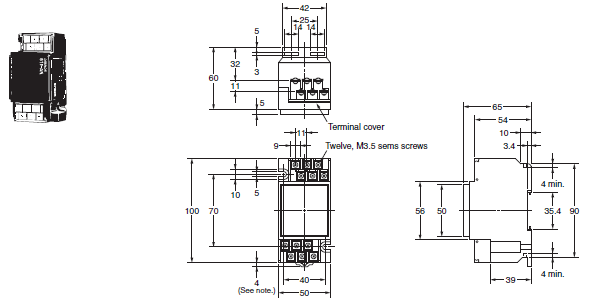

61F-AN

61F-AN / -APN2 Dimensions 1

Note: Dimensions are with the DIN rail mounting (sliding) bracket attached.

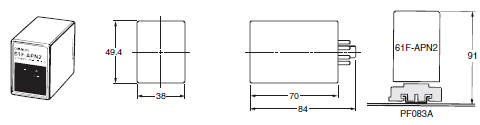

61F-APN2

61F-AN / -APN2 Dimensions 2

Use a PFC-N8 Mounting Bracket to mount the Level Controller to a PF083A Rail-mounted Socket.

PFC-N8

61F-AN / -APN2 Dimensions 4

Note: PFC-N8 Mounting Bracket (provided with the Level Controller)
