F03-05, PH-1 / -2

Electrode Bands / Underwater Electrode

F03-05, PH-1 / -2

Easy Mounting and Removal. Ideal for Applications in Deep Wells.

(Unit: mm)

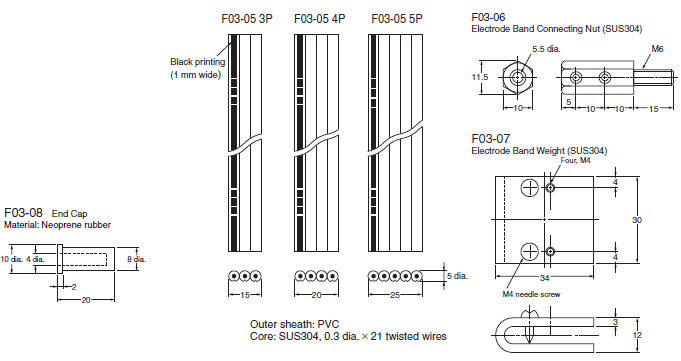

Electrode Bands

F03-05, PH-1 / -2 Dimensions 1

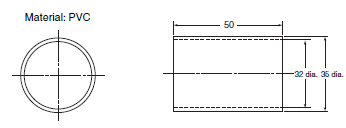

Insulation Cap

F03-09

F03-05, PH-1 / -2 Dimensions 2

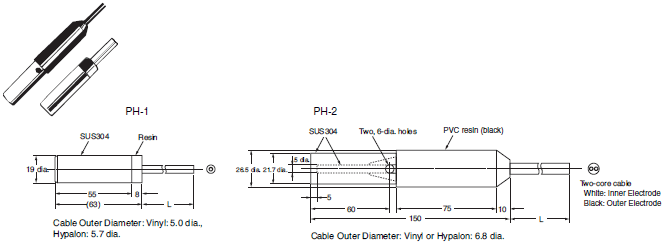

Underwater Electrodes

PH-1
PH-2

F03-05, PH-1 / -2 Dimensions 3
