CJ2M-CPU3[] / CPU1[] / MD21[]

CJ-series CJ2M CPU Units, Pulse I/O Modules

CJ2M-CPU3[] / CPU1[] / MD21[]

Since 2001, CJ1M-series PLCs are in control of a wide variety of applications worldwide. The accumulated experience and advancements in technology now result in CJ2M; fully compatible, yet fully new.

Caution: All units are in millimeters unless otherwise indicated.

CJ2M-CPU3[]

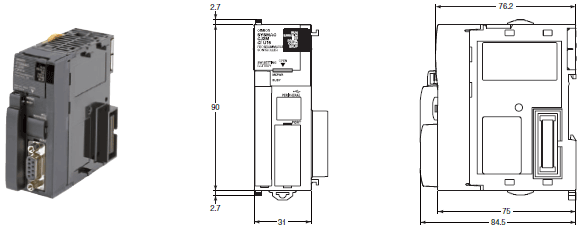

CJ2M-CPU3[] / CPU1[] / MD21[] Dimensions 1

CJ2M-CPU1[]

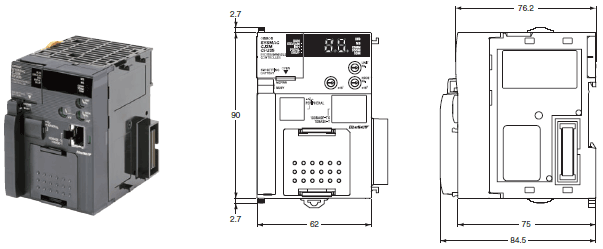

CJ2M-CPU3[] / CPU1[] / MD21[] Dimensions 2

CJ2M-MD211/MD212

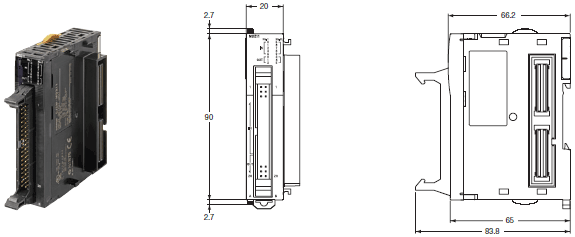

CJ2M-CPU3[] / CPU1[] / MD21[] Dimensions 3
