E52 (General purpose Models)

Temperature Sensor (General-purpose Models)

E52 (General purpose Models)

Sheathed Platinum Resistance Thermometers, Standard Platinum Resistance Thermometers, Sheathed Thermocouples and Standard Thermocouples

Description Model and appearance Tem-
perature
range
(See
note 2.)
Element
type
Conductor
type
Class Protective
tubing
material
Terminal
type
Sheathed
platinum
resistance
thermometer
E52-P[]AY
3150_lu_1_1
-196°C to
450°C
Pt100 3-
conductor
system
B SUS316 Exposed
lead wires
E52-P[]C-N
3150_lu_1_2
-196°C to
450°C
ASTM316L Enclosed
terminals
E52-P[]B-N
3150_lu_1_3
Exposed
terminals
Standard
platinum
resistance
thermometer
E52-P[]C-N
3150_lu_1_4
0°C to
450°C
SUS316 Enclosed
terminals
Sheathed
thermocouple
E52-CA[]AY
E52-IC[]AY
3150_lu_1_5
0°C to
900°C
K (CA)
J (IC)
Non-
grounded
type
2
(0.75)
ASTM316L Exposed
lead wires
E52-CA[]B-N
E52-IC[]B-N
3150_lu_1_6
Exposed
terminals
E52-CA[]C-N
E52-IC[]C-N
3150_lu_1_7
Enclosed
terminals
Standard
thermocouple
E52-CA[]B-N
E52-IC[]B-N
3150_lu_1_8
SUS316 Exposed
terminals
E52-CA[]C-N
E52-IC[]C-N
3150_lu_1_9
Enclosed
terminals
E52-PR[]C-N
3150_lu_1_10
0°C to
1,400°C
R (PR) 2
(0.25)
JIS ceramic
JIS special
ceramic
Enclosed
terminals
Note: 1. These tables provide general specifications only. Be sure to read the detailed specifications and precautions
                before use.
          2. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.

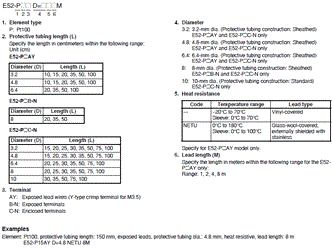

Sheathed Platinum Resistance Thermometers

Exposed-lead Models

E52-P[]AY

Terminal
type
Protective
tubing
diameter
D (mm)
Protective
tubing
length L
(cm)
Lead
wire
type
Lead wire length M (m)
1 2
Model
Exposed-
lead
Models
3.2 dia. 15 Standard E52-P15AY D=3.2 1M E52-P15AY D=3.2 2M
Heat
resistive
E52-P15AY D=3.2 NETU 1M E52-P15AY D=3.2 NETU 2M
20 Standard E52-P20AY D=3.2 1M E52-P20AY D=3.2 2M
Heat
resistive
E52-P20AY D=3.2 NETU 1M E52-P20AY D=3.2 NETU 2M
35 Standard E52-P35AY D=3.2 1M E52-P35AY D=3.2 2M
Heat
resistive
E52-P35AY D=3.2 NETU 1M E52-P35AY D=3.2 NETU 2M
4.8 dia. 20 Standard E52-P20AY D=4.8 1M E52-P20AY D=4.8 2M
Heat
resistive
E52-P20AY D=4.8 NETU 1M E52-P20AY D=4.8 NETU 2M
35 Standard E52-P35AY D=4.8 1M E52-P35AY D=4.8 2M
Heat
resistive
E52-P35AY D=4.8 NETU 1M E52-P35AY D=4.8 NETU 2M
50 Standard E52-P50AY D=4.8 1M E52-P50AY D=4.8 2M
Heat
resistive
E52-P50AY D=4.8 NETU 1M E52-P50AY D=4.8 NETU 2M
6.4 dia. 20 Standard E52-P20AY D=6.4 1M E52-P20AY D=6.4 2M
Heat
resistive
E52-P20AY D=6.4 NETU 1M E52-P20AY D=6.4 NETU 2M
35 Standard E52-P35AY D=6.4 1M E52-P35AY D=6.4 2M
Heat
resistive
E52-P35AY D=6.4 NETU 1M E52-P35AY D=6.4 NETU 2M
50 Standard E52-P50AY D=6.4 1M E52-P50AY D=6.4 2M
Heat
resistive
E52-P50AY D=6.4 NETU 1M E52-P50AY D=6.4 NETU 2M

Terminal
type
Protective
tubing
diameter
D (mm)
Protective
tubing
length L
(cm)
Lead
wire
type
Lead wire length M (m)
4 8
Model
Exposed-
lead
Models
3.2 dia. 15 Standard E52-P15AY D=3.2 4M E52-P15AY D=3.2 8M
Heat
resistive
E52-P15AY D=3.2 NETU 4M E52-P15AY D=3.2 NETU 8M
20 Standard E52-P20AY D=3.2 4M E52-P20AY D=3.2 8M
Heat
resistive
E52-P20AY D=3.2 NETU 4M E52-P20AY D=3.2 NETU 8M
35 Standard E52-P35AY D=3.2 4M E52-P35AY D=3.2 8M
Heat
resistive
E52-P35AY D=3.2 NETU 4M E52-P35AY D=3.2 NETU 8M
4.8 dia. 20 Standard E52-P20AY D=4.8 4M E52-P20AY D=4.8 8M
Heat
resistive
E52-P20AY D=4.8 NETU 4M E52-P20AY D=4.8 NETU 8M
35 Standard E52-P35AY D=4.8 4M E52-P35AY D=4.8 8M
Heat
resistive
E52-P35AY D=4.8 NETU 4M E52-P35AY D=4.8 NETU 8M
50 Standard E52-P50AY D=4.8 4M E52-P50AY D=4.8 8M
Heat
resistive
E52-P50AY D=4.8 NETU 4M E52-P50AY D=4.8 NETU 8M
6.4 dia. 20 Standard E52-P20AY D=6.4 4M E52-P20AY D=6.4 8M
Heat
resistive
E52-P20AY D=6.4 NETU 4M E52-P20AY D=6.4 NETU 8M
35 Standard E52-P35AY D=6.4 4M E52-P35AY D=6.4 8M
Heat
resistive
E52-P35AY D=6.4 NETU 4M E52-P35AY D=6.4 NETU 8M
50 Standard E52-P50AY D=6.4 4M E52-P50AY D=6.4 8M
Heat
resistive
E52-P50AY D=6.4 NETU 4M E52-P50AY D=6.4 NETU 8M

Enclosed-terminal Models

E52-P[]C-N

Terminal
type
Protective
tubing
length L
(cm)
Protective tubing diameter D (mm)
3.2 dia. 4.8 dia. 6.4 dia. 8 dia.
Model
Enclosed-
terminal
Models
20 E52-P20C-N D=3.2 E52-P20C-N D=4.8 E52-P20C-N D=6.4 E52-P20C-N D=8
35 E52-P35C-N D=3.2 E52-P35C-N D=4.8 E52-P35C-N D=6.4 E52-P35C-N D=8
50 E52-P50C-N D=3.2 E52-P50C-N D=4.8 E52-P50C-N D=6.4 E52-P50C-N D=8
75 --- E52-P75C-N D=4.8 E52-P75C-N D=6.4 ---

Exposed-terminal Models

E52-P[]B-N

Terminal type Protective tubing
length L (cm)
Protective tubing diameter D (mm)
8 dia.
Model
Exposed-terminal Models 20 E52-P20B-N D=8
35 E52-P35B-N D=8
50 E52-P50B-N D=8

Standard Platinum Resistance Thermometers

Enclosed-terminal Models

E52-P[]C-N

Terminal type Protective tubing length L (cm) Protective tubing diameter D (mm)
10 dia.
Model
Enclosed-terminal Models 35 E52-P35C-N D=10
50 E52-P50C-N D=10
75 E52-P75C-N D=10
100 E52-P100C-N D=10

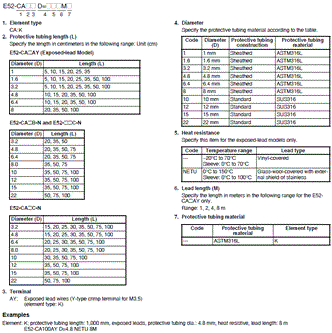

Sheathed Thermocouples

Exposed-lead Models

E52-CA[]AY

K (CA) Model Information (E52-CA[]AY)

Terminal
type
Protective
tubing
diameter
D (mm)
Protective
tubing
length L
(cm)
Lead
wire
type
Lead wire length M (m)
1 2
Model
Exposed-
lead
Models
1 dia. 15 Standard E52-CA15AY D=1 1M E52-CA15AY D=1 2M
Heat
resistive
E52-CA15AY D=1 NETU 1M E52-CA15AY D=1 NETU 2M
20 Standard E52-CA20AY D=1 1M E52-CA20AY D=1 2M
Heat
resistive
E52-CA20AY D=1 NETU 1M E52-CA20AY D=1 NETU 2M
35 Standard E52-CA35AY D=1 1M E52-CA35AY D=1 2M
Heat
resistive
E52-CA35AY D=1 NETU 1M E52-CA35AY D=1 NETU 2M
1.6 dia. 15 Standard E52-CA15AY D=1.6 1M E52-CA15AY D=1.6 2M
Heat
resistive
E52-CA15AY D=1.6 NETU 1M E52-CA15AY D=1.6 NETU 2M
20 Standard E52-CA20AY D=1.6 1M E52-CA20AY D=1.6 2M
Heat
resistive
E52-CA20AY D=1.6 NETU 1M E52-CA20AY D=1.6 NETU 2M
35 Standard E52-CA35AY D=1.6 1M E52-CA35AY D=1.6 2M
Heat
resistive
E52-CA35AY D=1.6 NETU 1M E52-CA35AY D=1.6 NETU 2M
3.2 dia. 15 Standard E52-CA15AY D=3.2 1M E52-CA15AY D=3.2 2M
Heat
resistive
E52-CA15AY D=3.2 NETU 1M E52-CA15AY D=3.2 NETU 2M
20 Standard E52-CA20AY D=3.2 1M E52-CA20AY D=3.2 2M
Heat
resistive
E52-CA20AY D=3.2 NETU 1M E52-CA20AY D=3.2 NETU 2M
35 Standard E52-CA35AY D=3.2 1M E52-CA35AY D=3.2 2M
Heat
resistive
E52-CA35AY D=3.2 NETU 1M E52-CA35AY D=3.2 NETU 2M
50 Standard E52-CA50AY D=3.2 1M E52-CA50AY D=3.2 2M
Heat
resistive
E52-CA50AY D=3.2 NETU 1M E52-CA50AY D=3.2 NETU 2M
4.8 dia. 20 Standard E52-CA20AY D=4.8 1M E52-CA20AY D=4.8 2M
Heat
resistive
E52-CA20AY D=4.8 NETU 1M E52-CA20AY D=4.8 NETU 2M
35 Standard E52-CA35AY D=4.8 1M E52-CA35AY D=4.8 2M
Heat
resistive
E52-CA35AY D=4.8 NETU 1M E52-CA35AY D=4.8 NETU 2M
50 Standard E52-CA50AY D=4.8 1M E52-CA50AY D=4.8 2M
Heat
resistive
E52-CA50AY D=4.8 NETU 1M E52-CA50AY D=4.8 NETU 2M
6.4 dia. 20 Standard E52-CA20AY D=6.4 1M E52-CA20AY D=6.4 2M
Heat
resistive
E52-CA20AY D=6.4 NETU 1M E52-CA20AY D=6.4 NETU 2M
35 Standard E52-CA35AY D=6.4 1M E52-CA35AY D=6.4 2M
Heat
resistive
E52-CA35AY D=6.4 NETU 1M E52-CA35AY D=6.4 NETU 2M
50 Standard E52-CA50AY D=6.4 1M E52-CA50AY D=6.4 2M
Heat
resistive
E52-CA50AY D=6.4 NETU 1M E52-CA50AY D=6.4 NETU 2M
8 dia. 20 Standard E52-CA20AY D=8 1M E52-CA20AY D=8 2M
Heat
resistive
E52-CA20AY D=8 NETU 1M E52-CA20AY D=8 NETU 2M
35 Standard E52-CA35AY D=8 1M E52-CA35AY D=8 2M
Heat
resistive
E52-CA35AY D=8 NETU 1M E52-CA35AY D=8 NETU 2M
50 Standard E52-CA50AY D=8 1M E52-CA50AY D=8 2M
Heat
resistive
E52-CA50AY D=8 NETU 1M E52-CA50AY D=8 NETU 2M

Terminal
type
Protective
tubing
diameter
D (mm)
Protective
tubing
length L
(cm)
Lead
wire
type
Lead wire length M (m)
4 8
Model
Exposed-
lead
Models
1 dia. 15 Standard E52-CA15AY D=1 4M E52-CA15AY D=1 8M
Heat
resistive
E52-CA15AY D=1 NETU 4M E52-CA15AY D=1 NETU 8M
20 Standard E52-CA20AY D=1 4M E52-CA20AY D=1 8M
Heat
resistive
E52-CA20AY D=1 NETU 4M E52-CA20AY D=1 NETU 8M
35 Standard E52-CA35AY D=1 4M E52-CA35AY D=1 8M
Heat
resistive
E52-CA35AY D=1 NETU 4M E52-CA35AY D=1 NETU 8M
1.6 dia. 15 Standard E52-CA15AY D=1.6 4M E52-CA15AY D=1.6 8M
Heat
resistive
E52-CA15AY D=1.6 NETU 4M E52-CA15AY D=1.6 NETU 8M
20 Standard E52-CA20AY D=1.6 4M E52-CA20AY D=1.6 8M
Heat
resistive
E52-CA20AY D=1.6 NETU 4M E52-CA20AY D=1.6 NETU 8M
35 Standard E52-CA35AY D=1.6 4M E52-CA35AY D=1.6 8M
Heat
resistive
E52-CA35AY D=1.6 NETU 4M E52-CA35AY D=1.6 NETU 8M
3.2 dia. 15 Standard E52-CA15AY D=3.2 4M E52-CA15AY D=3.2 8M
Heat
resistive
E52-CA15AY D=3.2 NETU 4M E52-CA15AY D=3.2 NETU 8M
20 Standard E52-CA20AY D=3.2 4M E52-CA20AY D=3.2 8M
Heat
resistive
E52-CA20AY D=3.2 NETU 4M E52-CA20AY D=3.2 NETU 8M
35 Standard E52-CA35AY D=3.2 4M E52-CA35AY D=3.2 8M
Heat
resistive
E52-CA35AY D=3.2 NETU 4M E52-CA35AY D=3.2 NETU 8M
50 Standard E52-CA50AY D=3.2 4M E52-CA50AY D=3.2 8M
Heat
resistive
E52-CA50AY D=3.2 NETU 4M E52-CA50AY D=3.2 NETU 8M
4.8 dia. 20 Standard E52-CA20AY D=4.8 4M E52-CA20AY D=4.8 8M
Heat
resistive
E52-CA20AY D=4.8 NETU 4M E52-CA20AY D=4.8 NETU 8M
35 Standard E52-CA35AY D=4.8 4M E52-CA35AY D=4.8 8M
Heat
resistive
E52-CA35AY D=4.8 NETU 4M E52-CA35AY D=4.8 NETU 8M
50 Standard E52-CA50AY D=4.8 4M E52-CA50AY D=4.8 8M
Heat
resistive
E52-CA50AY D=4.8 NETU 4M E52-CA50AY D=4.8 NETU 8M
6.4 dia. 20 Standard E52-CA20AY D=6.4 4M E52-CA20AY D=6.4 8M
Heat
resistive
E52-CA20AY D=6.4 NETU 4M E52-CA20AY D=6.4 NETU 8M
35 Standard E52-CA35AY D=6.4 4M E52-CA35AY D=6.4 8M
Heat
resistive
E52-CA35AY D=6.4 NETU 4M E52-CA35AY D=6.4 NETU 8M
50 Standard E52-CA50AY D=6.4 4M E52-CA50AY D=6.4 8M
Heat
resistive
E52-CA50AY D=6.4 NETU 4M E52-CA50AY D=6.4 NETU 8M
8 dia. 20 Standard E52-CA20AY D=8 4M E52-CA20AY D=8 8M
Heat
resistive
E52-CA20AY D=8 NETU 4M E52-CA20AY D=8 NETU 8M
35 Standard E52-CA35AY D=8 4M E52-CA35AY D=8 8M
Heat
resistive
E52-CA35AY D=8 NETU 4M E52-CA35AY D=8 NETU 8M
50 Standard E52-CA50AY D=8 4M E52-CA50AY D=8 8M
Heat
resistive
E52-CA50AY D=8 NETU 4M E52-CA50AY D=8 NETU 8M

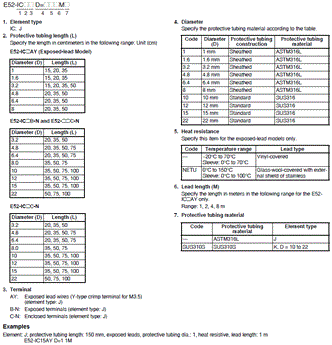

Exposed-lead Models

E52-IC[]AY

Terminal
type
Protective
tubing
diameter
D (mm)
Protective
tubing
length L
(cm)
Lead
wire
type
Lead wire length M (m)
1 2 4
Model
Exposed-
lead
Models
1 dia. 15 Standard E52-IC15AY D=1 1M E52-IC15AY D=1 2M E52-IC15AY D=1 4M
Heat
resistive
E52-IC15AY D=1 NETU 1M E52-IC15AY D=1 NETU 2M E52-IC15AY D=1 NETU 4M
20 Standard E52-IC20AY D=1 1M E52-IC20AY D=1 2M E52-IC20AY D=1 4M
Heat
resistive
E52-IC20AY D=1 NETU 1M E52-IC20AY D=1 NETU 2M E52-IC20AY D=1 NETU 4M
35 Standard E52-IC35AY D=1 1M E52-IC35AY D=1 2M E52-IC35AY D=1 4M
Heat
resistive
E52-IC35AY D=1 NETU 1M E52-IC35AY D=1 NETU 2M E52-IC35AY D=1 NETU 4M
1.6 dia. 15 Standard E52-IC15AY D=1.6 1M E52-IC15AY D=1.6 2M E52-IC15AY D=1.6 4M
Heat
resistive
E52-IC15AY D=1.6 NETU 1M E52-IC15AY D=1.6 NETU 2M E52-IC15AY D=1.6 NETU 4M
20 Standard E52-IC20AY D=1.6 1M E52-IC20AY D=1.6 2M E52-IC20AY D=1.6 4M
Heat
resistive
E52-IC20AY D=1.6 NETU 1M E52-IC20AY D=1.6 NETU 2M E52-IC20AY D=1.6 NETU 4M
35 Standard E52-IC35AY D=1.6 1M E52-IC35AY D=1.6 2M E52-IC35AY D=1.6 4M
Heat
resistive
E52-IC35AY D=1.6 NETU 1M E52-IC35AY D=1.6 NETU 2M E52-IC35AY D=1.6 NETU 4M
3.2 dia. 15 Standard E52-IC15AY D=3.2 1M E52-IC15AY D=3.2 2M E52-IC15AY D=3.2 4M
Heat
resistive
E52-IC15AY D=3.2 NETU 1M E52-IC15AY D=3.2 NETU 2M E52-IC15AY D=3.2 NETU 4M
20 Standard E52-IC20AY D=3.2 1M E52-IC20AY D=3.2 2M E52-IC20AY D=3.2 4M
Heat
resistive
E52-IC20AY D=3.2 NETU 1M E52-IC20AY D=3.2 NETU 2M E52-IC20AY D=3.2 NETU 4M
35 Standard E52-IC35AY D=3.2 1M E52-IC35AY D=3.2 2M E52-IC35AY D=3.2 4M
Heat
resistive
E52-IC35AY D=3.2 NETU 1M E52-IC35AY D=3.2 NETU 2M E52-IC35AY D=3.2 NETU 4M
50 Standard E52-IC50AY D=3.2 1M E52-IC50AY D=3.2 2M E52-IC50AY D=3.2 4M
Heat
resistive
E52-IC50AY D=3.2 NETU 1M E52-IC50AY D=3.2 NETU 2M E52-IC50AY D=3.2 NETU 4M
4.8 dia. 20 Standard E52-IC20AY D=4.8 1M E52-IC20AY D=4.8 2M E52-IC20AY D=4.8 4M
Heat
resistive
E52-IC20AY D=4.8 NETU 1M E52-IC20AY D=4.8 NETU 2M E52-IC20AY D=4.8 NETU 4M
35 Standard E52-IC35AY D=4.8 1M E52-IC35AY D=4.8 2M E52-IC35AY D=4.8 4M
Heat
resistive
E52-IC35AY D=4.8 NETU 1M E52-IC35AY D=4.8 NETU 2M E52-IC35AY D=4.8 NETU 4M
50 Standard E52-IC50AY D=4.8 1M E52-IC50AY D=4.8 2M E52-IC50AY D=4.8 4M
Heat
resistive
E52-IC50AY D=4.8 NETU 1M E52-IC50AY D=4.8 NETU 2M E52-IC50AY D=4.8 NETU 4M
6.4 dia. 20 Standard E52-IC20AY D=6.4 1M E52-IC20AY D=6.4 2M E52-IC20AY D=6.4 4M
Heat
resistive
E52-IC20AY D=6.4 NETU 1M E52-IC20AY D=6.4 NETU 2M E52-IC20AY D=6.4 NETU 4M
35 Standard E52-IC35AY D=6.4 1M E52-IC35AY D=6.4 2M E52-IC35AY D=6.4 4M
Heat
resistive
E52-IC35AY D=6.4 NETU 1M E52-IC35AY D=6.4 NETU 2M E52-IC35AY D=6.4 NETU 4M
50 Standard E52-IC50AY D=6.4 1M E52-IC50AY D=6.4 2M E52-IC50AY D=6.4 4M
Heat
resistive
E52-IC50AY D=6.4 NETU 1M E52-IC50AY D=6.4 NETU 2M E52-IC50AY D=6.4 NETU 4M
8 dia. 20 Standard E52-IC20AY D=8 1M E52-IC20AY D=8 2M E52-IC20AY D=8 4M
Heat
resistive
E52-IC20AY D=8 NETU 1M E52-IC20AY D=8 NETU 2M E52-IC20AY D=8 NETU 4M
35 Standard E52-IC35AY D=8 1M E52-IC35AY D=8 2M E52-IC35AY D=8 4M
Heat
resistive
E52-IC35AY D=8 NETU 1M E52-IC35AY D=8 NETU 2M E52-IC35AY D=8 NETU 4M
50 Standard E52-IC50AY D=8 1M E52-IC50AY D=8 2M E52-IC50AY D=8 4M
Heat
resistive
E52-IC50AY D=8 NETU 1M E52-IC50AY D=8 NETU 2M E52-IC50AY D=8 NETU 4M

Exposed-terminal Models

E52-CA[]B-N
E52-IC[]B-N

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
3.2 dia. 4.8 dia.
Model
K (CA) Exposed-terminal
Models
20 E52-CA20B-N D=3.2 E52-CA20B-N D=4.8
35 E52-CA35B-N D=3.2 E52-CA35B-N D=4.8
50 E52-CA50B-N D=3.2 E52-CA50B-N D=4.8
75 --- E52-CA75B-N D=4.8
J (IC) Exposed-terminal
Models
20 E52-IC20B-N D=3.2 E52-IC20B-N D=4.8
35 E52-IC35B-N D=3.2 E52-IC35B-N D=4.8
50 E52-IC50B-N D=3.2 E52-IC50B-N D=4.8
75 --- E52-IC75B-N D=4.8

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
6.4 dia. 8 dia.
Model
K (CA) Exposed-terminal
Models
20 E52-CA20B-N D=6.4 ---
35 E52-CA35B-N D=6.4 E52-CA35B-N D=8
50 E52-CA50B-N D=6.4 E52-CA50B-N D=8
75 E52-CA75B-N D=6.4 E52-CA75B-N D=8
J (IC) Exposed-terminal
Models
20 E52-IC20B-N D=6.4 ---
35 E52-IC35B-N D=6.4 E52-IC35B-N D=8
50 E52-IC50B-N D=6.4 E52-IC50B-N D=8
75 E52-IC75B-N D=6.4 E52-IC75B-N D=8

Enclosed-terminal Models

E52-CA[]C-N
E52-IC[]C-N

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
3.2 dia. 4.8 dia.
Model
K (CA) Enclosed-terminal
Models
20 E52-CA20C-N D=3.2 E52-CA20C-N D=4.8
35 E52-CA35C-N D=3.2 E52-CA35C-N D=4.8
50 E52-CA50C-N D=3.2 E52-CA50C-N D=4.8
75 --- E52-CA75C-N D=4.8
J (IC) Enclosed-terminal
Models
20 E52-IC20C-N D=3.2 E52-IC20C-N D=4.8
35 E52-IC35C-N D=3.2 E52-IC35C-N D=4.8
50 E52-IC50C-N D=3.2 E52-IC50C-N D=4.8
75 --- E52-IC75C-N D=4.8

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
6.4 dia. 8 dia.
Model
K (CA) Enclosed-terminal
Models
20 E52-CA20C-N D=6.4 ---
35 E52-CA35C-N D=6.4 E52-CA35C-N D=8
50 E52-CA50C-N D=6.4 E52-CA50C-N D=8
75 E52-CA75C-N D=6.4 E52-CA75C-N D=8
J (IC) Enclosed-terminal
Models
20 E52-IC20C-N D=6.4 ---
35 E52-IC35C-N D=6.4 E52-IC35C-N D=8
50 E52-IC50C-N D=6.4 E52-IC50C-N D=8
75 E52-IC75C-N D=6.4 E52-IC75C-N D=8

Standard Thermocouples

Exposed-terminal Models

E52-CA[]B-N
E52-IC[]B-N

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
10 dia. 12 dia.
Model
K (CA) Exposed-terminal
Models
35 E52-CA35B-N D=10 E52-CA35B-N D=12
50 E52-CA50B-N D=10 E52-CA50B-N D=12
75 E52-CA75B-N D=10 E52-CA75B-N D=12
100 E52-CA100B-N D=10 E52-CA100B-N D=12
J (IC) Exposed-terminal
Models
35 E52-IC35B-N D=10 E52-IC35B-N D=12
50 E52-IC50B-N D=10 E52-IC50B-N D=12
75 E52-IC75B-N D=10 E52-IC75B-N D=12
100 E52-IC100B-N D=10 E52-IC100B-N D=12

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
15 dia. 22 dia.
Model
K (CA) Exposed-terminal
Models
35 E52-CA35B-N D=15 ---
50 E52-CA50B-N D=15 E52-CA50B-N D=22
75 E52-CA75B-N D=15 E52-CA75B-N D=22
100 E52-CA100B-N D=15 E52-CA100B-N D=22
J (IC) Exposed-terminal
Models
35 E52-IC35B-N D=15 ---
50 E52-IC50B-N D=15 E52-IC50B-N D=22
75 E52-IC75B-N D=15 E52-IC75B-N D=22
100 E52-IC100B-N D=15 E52-IC100B-N D=22

Enclosed-terminal Models

E52-CA[]C-N
E52-IC[]C-N

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
10 dia. 12 dia.
Model
K (CA) Enclosed-terminal
Models
35 E52-CA35C-N D=10 E52-CA35C-N D=12
50 E52-CA50C-N D=10 E52-CA50C-N D=12
75 E52-CA75C-N D=10 E52-CA75C-N D=12
100 E52-CA100C-N D=10 E52-CA100C-N D=12
J (IC) Enclosed-terminal
Models
35 E52-IC35C-N D=10 E52-IC35C-N D=12
50 E52-IC50C-N D=10 E52-IC50C-N D=12
75 E52-IC75C-N D=10 E52-IC75C-N D=12
100 E52-IC100C-N D=10 E52-IC100C-N D=12

Element
type
Terminal type Protective
tubing length L
(cm)
Protective tubing diameter D (mm)
15 dia. 22 dia.
Model
K (CA) Enclosed-terminal
Models
35 E52-CA35C-N D=15 ---
50 E52-CA50C-N D=15 E52-CA50C-N D=22
75 E52-CA75C-N D=15 E52-CA75C-N D=22
100 E52-CA100C-N D=15 E52-CA100C-N D=22
J (IC) Enclosed-terminal
Models
35 E52-IC35C-N D=15 ---
50 E52-IC50C-N D=15 E52-IC50C-N D=22
75 E52-IC75C-N D=15 ---
100 E52-IC100C-N D=15 ---

Enclosed-terminal Models (High-temperature Use)

E52-PR[]C-N

Element type Terminal type Protective tubing
length L (cm)
Protective tubing diameter D (mm)
15 dia.
Model
R (See note 1.) Enclosed-terminal Models 50 E52-PR50C-N D=15 PT1
75 E52-PR75C-N D=15 PT1
100 E52-PR100C-N D=15 PT1
R (See note 2.) Enclosed-terminal Models 50 E52-PR50C-N D=15 PT0
75 E52-PR75C-N D=15 PT0
100 E52-PR100C-N D=15 PT0

Standard Protective tubing material Permissible temperature in dry air
Note 1:
JIS ceramic Cat.1 (PT1)
Mullite, high alumina, etc. 1,500°C (See note.)
Note 2:
JIS special ceramic (PT0)
Recrystallized alumina, fused alumina, etc. 1,600°C (See note.)

Note: The permissible temperature given for the protective tubing is higher than 1,400°C, but the permissible temperature of the thermocouple element wire is only 1,400°C. Therefore, the protective tubing of the E52-PR[]C-N can withstand high temperatures momentarily to the levels given in the table as exceptions, but the element wire will deteriorate quickly if the thermocouple is used regularly at temperatures that exceed the permissible temperature for the element wire.
