D4CC

Miniature Limit Switch

D4CC

Many Models Including Roller Lever Switches are Only 16-mm Thick with Connector

Caution: All units are in millimeters unless otherwise indicated.

Switches

Limit Switches

The [] in each model number is replaced with the code expressing the rated load of the model. Refer to Model Number Legend.

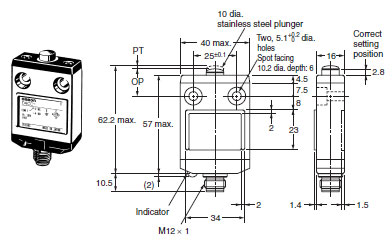

Pin Plunger
D4CC-[]001

D4CC Dimensions 3

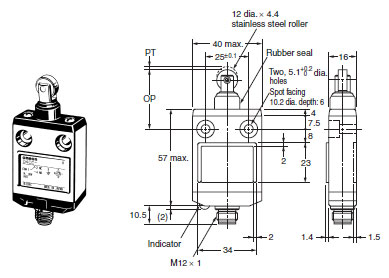

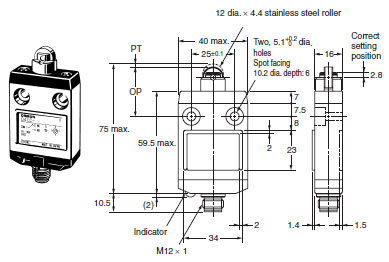

Roller Plunger
D4CC-[]002

D4CC Dimensions 4

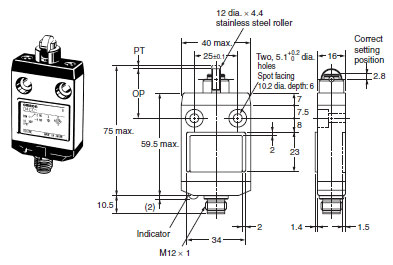

Crossroller Plunger
D4CC-[]003

D4CC Dimensions 5

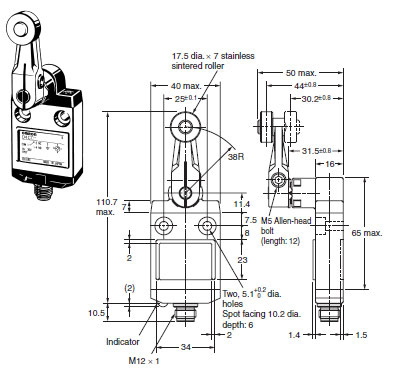

Roller Lever
D4CC-[]024

D4CC Dimensions 6

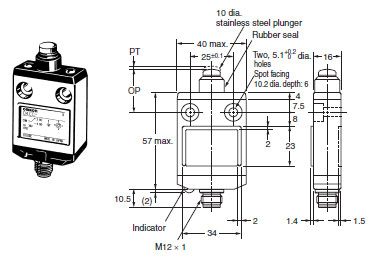

Sealed Pin Plunger
D4CC-[]031

D4CC Dimensions 7

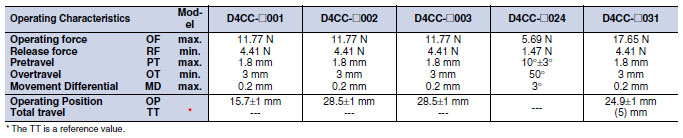

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

D4CC Dimensions 9

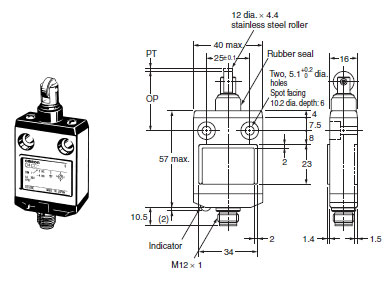

Sealed Roller Plunger
D4CC-[]032

D4CC Dimensions 10

Sealed Crossroller Plunger
D4CC-[]033

D4CC Dimensions 11

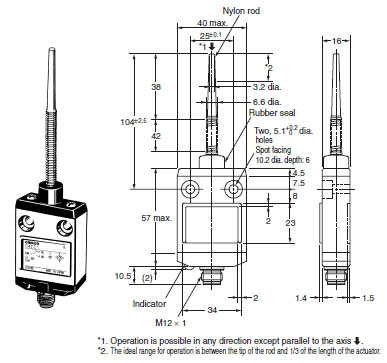

Plastic Rod
D4CC-[][]50

D4CC Dimensions 12

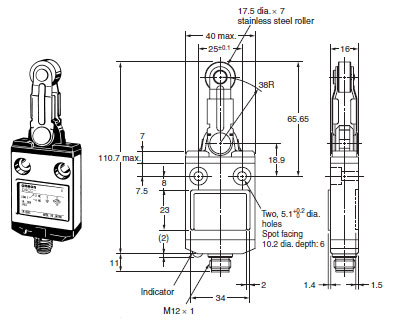

Center Roller Lever
D4CC-[][]60

D4CC Dimensions 13

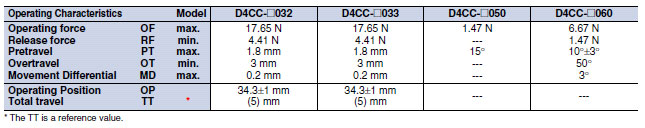

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

D4CC Dimensions 15

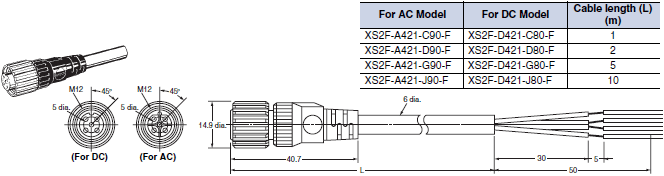

Applicable Cables

Select one of the specified Connector Plugs from the following table.

XS2F-D421-[]80-F (For DC)
XS2F-A421-[]90-F (For AC)

D4CC Dimensions 17

Special Mounting Plates (Limit Switches are not attached to the Plates.)

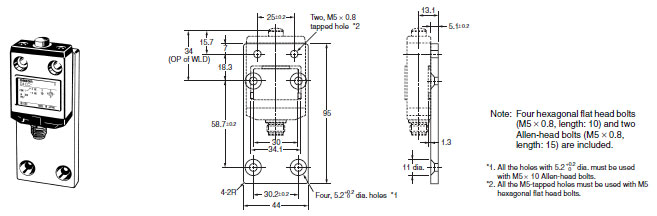

D4C-P001 (For D4CC-[]001)

D4CC Dimensions 19

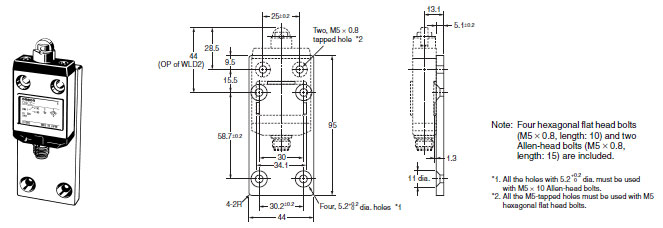

D4C-P002 (For D4CC-[]002)

D4CC Dimensions 20

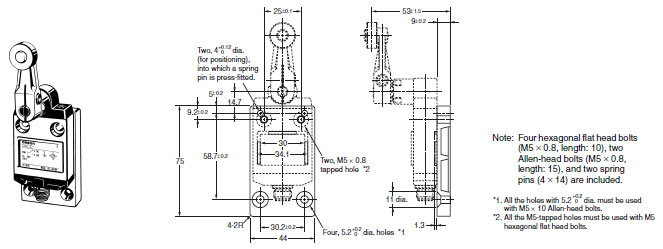

D4C-P020 (For D4CC-[]024)

D4CC Dimensions 21

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Remarks

D4CC Dimensions 23

There is no difference in mounting pitch between the Mounting Plate and the WL. The mounting depth of the D4CC with the Mounting Plate attached is, however, shorter than that of the panel-mounted WL.
